Is There a Non-Invasive Way to Monitor the Internal Health of Power Capacitors, Such as Their Equivalent Series Resistance (ESR)?

In the field of low-voltage reactive power compensation, healthy power capacitors are the core elements for ensuring the stable and efficient operation of the power system. However, just like all electronic components, power capacitors also gradually age over time. The deterioration of their internal health conditions, especially the increase in their equivalent series resistance (ESR), is the main cause of their performance decline and even failure and scrapping. The traditional method for monitoring the internal health conditions of power capacitors is to shut down the circuit and remove the power capacitors to measure key indicators such as equivalent series resistance (ESR). This method not only interrupts the reactive power compensation of the power system but also has very low efficiency in measuring the internal health conditions. So, is there a non-invasive method that can provide real-time insight into the internal health conditions of the power capacitors without affecting the normal operation of the system? To this question, Geyue Electric has provided an affirmative answer.

Core value of Non-Invasive Monitoring

The greatest value of non-invasive monitoring technology lies in its predictability and safety. This non-invasive monitoring technology enables us to capture the early signals of internal parameter changes in power capacitors before any visible degradation in their performance occurs. This method does not require removing the power capacitors from the compensation cabinet or interrupting the normal operation of the power supply system, thus achieving a smart upgrade from "periodic maintenance" to "on-demand maintenance". By continuously tracking key indicators, we can accurately predict the remaining lifespan of the power capacitors and arrange for their replacement before a failure occurs, effectively avoiding the risks of power factor decline, increased line losses, and even the failure of the entire compensation system due to sudden breakdown or sudden reduction in capacity of the power capacitors.

Online Diagnostic Method Measured by a ESR Meter

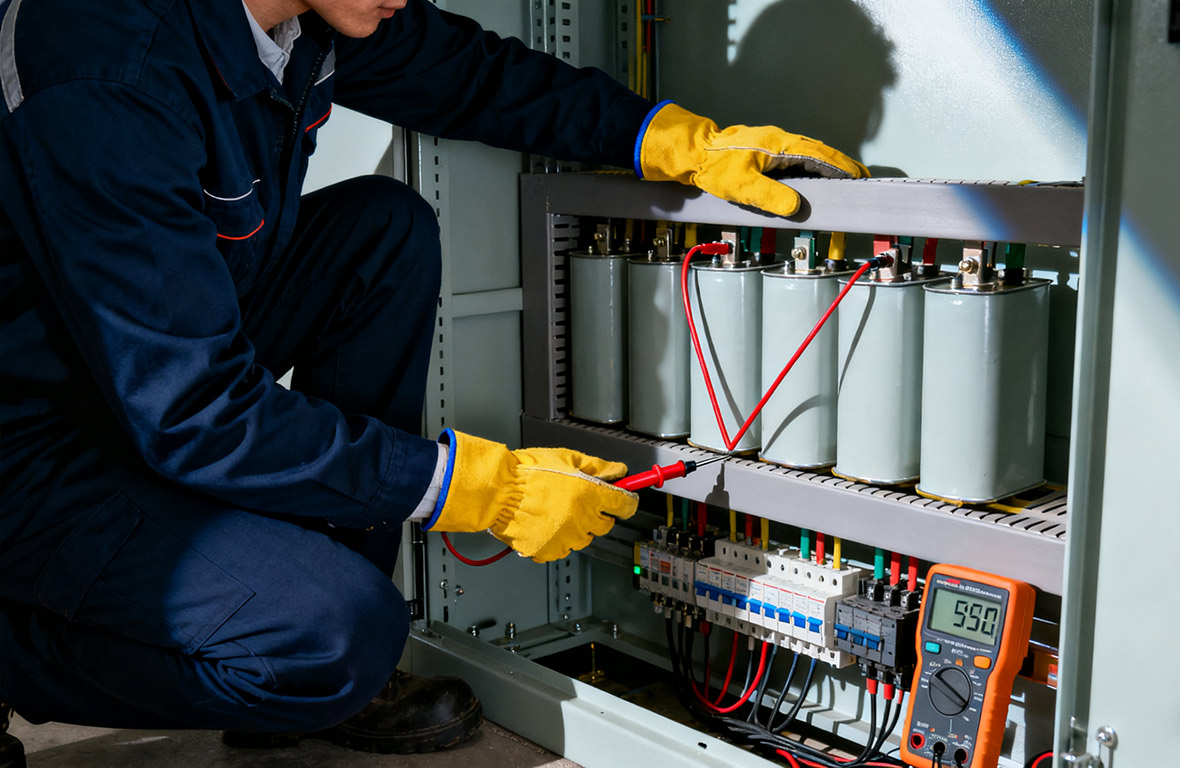

For on-site maintenance and rapid diagnosis of power capacitors’ health status, the dedicated ESR meter is an extremely efficient and practical tool. This instrument was originally designed to measure the equivalent series resistance (ESR) of power capacitors in real-time. Its working principle is to apply a high-frequency alternating test signal to the power capacitors. Under the high-frequency signal released by this meter, the capacitive reactance of the power capacitors becomes extremely low, and at this point, the impedance of the power capacitors is mainly contributed by the current ESR. Maintenance personnel only need to disconnect the power supply and directly place the probes of the ESR meter onto the connection terminals of the power capacitors in the low-voltage reactive power compensation cabinet, and they can quickly read the current ESR values. By comparing the ESR measurement values with the initial standard value or historical data of the ESR of the power capacitors, we can intuitively determine the aging degree of the power capacitors. The dedicated ESR meter makes monitoring the health status of power capacitors more convenient and efficient, and has always been a powerful tool for daily inspection and fault diagnosis in low-voltage reactive power compensation systems.

Real-time Analysis Method of System Ripple Voltage

For users who seek higher levels of automation and intelligence, the system ripple voltage analysis method offers an alternative solution for online real-time monitoring of the health status of power capacitors. As is well known, immediately upon the startup of the low-voltage reactive power compensation device, harmonics in the power grid and switching operations will generate ripple currents on the power capacitors. When this current flows through the equivalent series resistance of the power capacitor, it will produce a ripple voltage proportional to the ESR value. Maintenance personnel only need to install a precise sensor in the compensation circuit, and the system can continuously capture this tiny ripple voltage signal. Combined with the monitoring of the circuit current, the control unit can calculate the dynamic changes of ESR almost in real time. This method seamlessly integrates the monitoring function into the compensation system itself, providing a solid data foundation for achieving intelligent predictive maintenance.

The Smart Solutions of Geyue Electric

Fully aware of the significant importance of the health of capacitors to the stability of the entire power system, Geyue Electric has always been committed to integrating cutting-edge monitoring concepts into product design. We not only provide you with high-quality power capacitors, but also strive to offer a complete and reliable low-voltage reactive power compensation solution. Our intelligent compensation devices were designed with full consideration of the ability to sense the status of core components. Through embedded advanced algorithms and sensing technologies, they can continuously assess the operating status of the compensation capacitors and provide users with timely data feedback and warnings. Geyue Electric drives innovation through technology. Our goal is to build for you an efficient, stable, and self-insightful reactive power compensation system, thereby ensuring that your power grid operates in the optimal state for a long time, and safeguarding your enterprise's energy conservation, cost reduction, and safety production. If you have any confusion regarding the monitoring of the internal health condition of the power capacitors, please feel free to contact us via our email address info@gyele.com.cn. Geyue service team and Geyue engineering team are always ready and eager to assist you.
