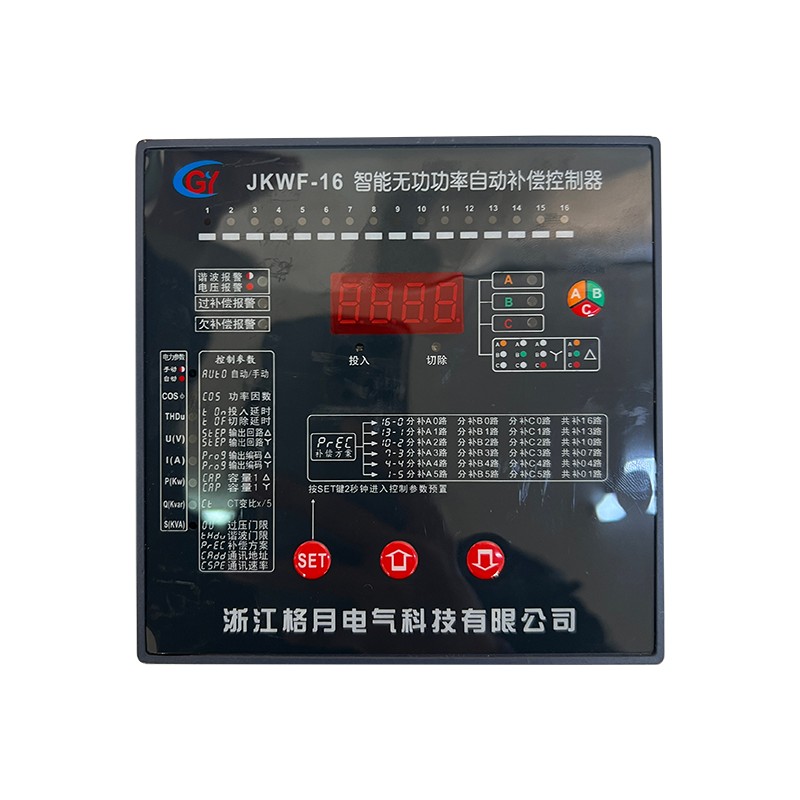

JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller
Model:JKWF Series
JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller is an advanced and highly efficient reactive power auto-compensation controller which has been elaborately developed by Geyue Electric for the precise and automatic regulation of the power capacitor in the low-voltage distribution system below 0.4KV.
1. Model: JKWF-12/ JKWF-16
2. Mounting Dimensions: 113×113mm
3. Output Loops: 12/16 loops
4. Features: High measurement accuracy. High compensation accuracy. Friendly interface. Easy operation.
5. Two Working Modes: Automatic operation. Manual operation
6. Protections: Power failure protection. Overvoltage/ Undervoltage protection.
This product is strictly compliant line with the JB/T 9663-2013 and DL/T597-1996 Standards.
1. Model: JKWF-12/ JKWF-16
2. Mounting Dimensions: 113×113mm
3. Output Loops: 12/16 loops
4. Features: High measurement accuracy. High compensation accuracy. Friendly interface. Easy operation.
5. Two Working Modes: Automatic operation. Manual operation
6. Protections: Power failure protection. Overvoltage/ Undervoltage protection.
This product is strictly compliant line with the JB/T 9663-2013 and DL/T597-1996 Standards.
Geyue Electric made a significant investment in the development of JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller by leveraging industry-leading technology. Through dedicated efforts and utilization of cutting-edge techniques, Geyue Electric managed to ensure that the JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller possesses high precision, high intelligence and high reliability. This achievement not only showcases Geyue Electric’s technical prowess but also reflects Geyue Electric’s commitment to delivering top-quality and advanced solutions in the field.
Geyue Electric JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller is a highly advanced and efficient device that takes the high-performance microprocessor as the core component. It is capable of simultaneously sampling the three-phase voltage signal and the three-phase current signal with remarkable precision and accuracy. This JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller offers an extensive range of 6 kinds of compensation schemes in the form of a unique "Split-Phase Compensation + Three-Phase Compensation" combination, along with an impressive 12 kinds of switching coding schemes.
The user is provided with the flexibility to select any control parameters according to their specific requirements and preferences. By modifying the control parameters, they will be permanently saved within the system. This is a significant advantage as even in the event of a power failure, the control parameters will remain intact and not be lost. This ensures the stability and reliability of the JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller’s operation, allowing for seamless continuation of its functions once power is restored.
The JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller utilizes the fundamental power factor and the fundamental reactive power to control the switching of the capacitor bank. The switching is tremendously stable without switching oscillation and is not prone to any interference from voltage harmonics and current harmonics. The controller is particularly well-suited for the automatic control of reactive power compensation of the power system with AC within the range of 45Hz to 65Hz and below 0.4KV.
Geyue Electric JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller is a highly advanced and efficient device that takes the high-performance microprocessor as the core component. It is capable of simultaneously sampling the three-phase voltage signal and the three-phase current signal with remarkable precision and accuracy. This JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller offers an extensive range of 6 kinds of compensation schemes in the form of a unique "Split-Phase Compensation + Three-Phase Compensation" combination, along with an impressive 12 kinds of switching coding schemes.
The user is provided with the flexibility to select any control parameters according to their specific requirements and preferences. By modifying the control parameters, they will be permanently saved within the system. This is a significant advantage as even in the event of a power failure, the control parameters will remain intact and not be lost. This ensures the stability and reliability of the JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller’s operation, allowing for seamless continuation of its functions once power is restored.
The JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller utilizes the fundamental power factor and the fundamental reactive power to control the switching of the capacitor bank. The switching is tremendously stable without switching oscillation and is not prone to any interference from voltage harmonics and current harmonics. The controller is particularly well-suited for the automatic control of reactive power compensation of the power system with AC within the range of 45Hz to 65Hz and below 0.4KV.
Hot Tags: JKWF Series 12 Loops 16 Loops APFC Automatic Power Factor Controller
Send Inquiry
Contact Info
-
Address
Zhangwan Industrial Zone, Beibaixiang Town, Yueqing City, Wenzhou City, Zhejiang Province, China
-
Tel
-
E-mail
COMPANY
Zhejiang Geyue Electric Technology Co., Ltd.
ADDRESS
Zhangwan Industrial Zone, Beibaixiang Town, Yueqing City, Wenzhou City, Zhejiang Province, China
FAQ
Q1-What is the meaning of APFC in electrical system?
APFC is an Automatic Power Factor Control panel which is used to improve the power factor, whenever required, by switching ON and OFF the required capacitor bank units automatically.The components of an Automatic Power Factor Correction (APFC) panel include:power capacitors, capacitor duty contactors, MCBs, APFC relays, APFC controllers, wires, an encloser and protection devices.
