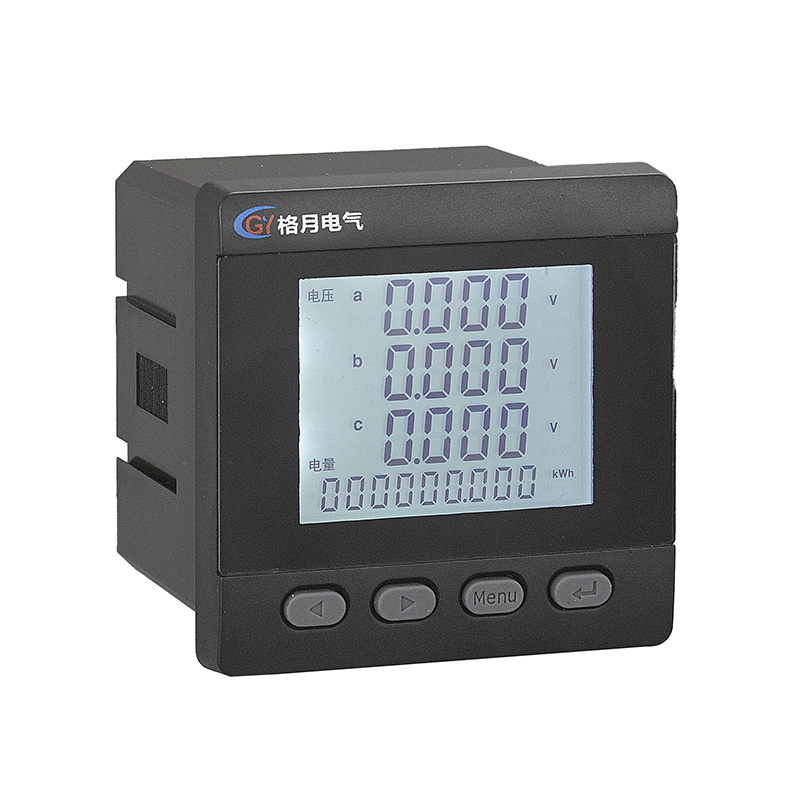

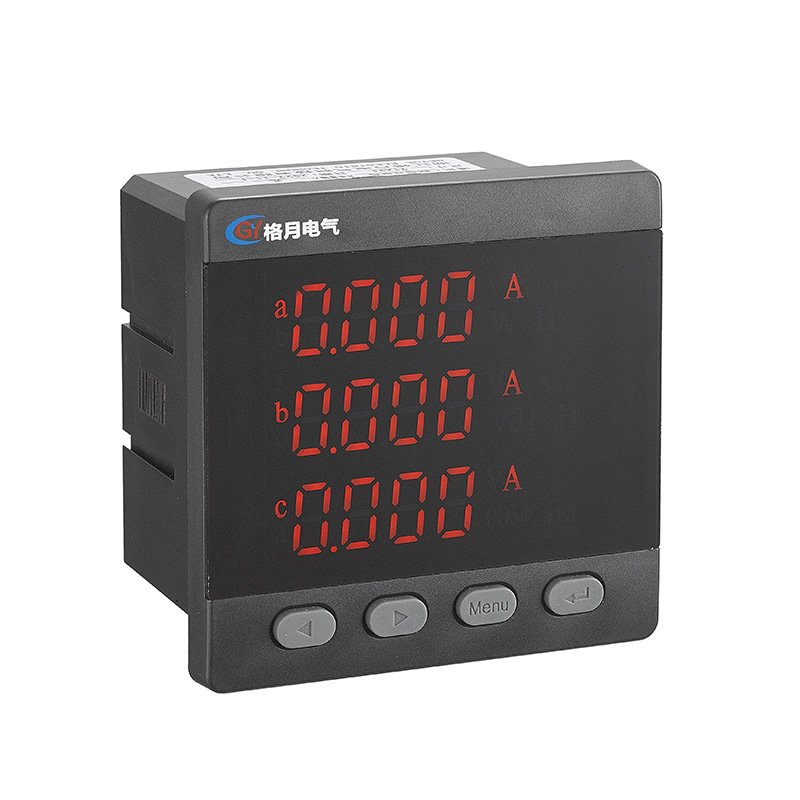

GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter

The Transformation from One-Way Recording to Multi-Dimensional Insights

Traditional electrical energy metering instruments usually can only achieve the basic function of recording the total electricity consumption in a single direction. Just like the limitation where a driver only knows the total mileage of the vehicle but cannot know its load status or driving direction, the one-way recording method is difficult to meet the deep needs of modern refined electricity management. The four-quadrant electricity metering function equipped in the GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter has achieved a fundamental breakthrough in this limitation. This function expands the electricity usage behavior from the single-dimensional "consumption statistics" to a four-dimensional metering space composed of "active- reactive" and "inflow-outflow". This technological innovation is not only an improvement in the measurement indicators of the instrument, but also an important milestone in the shift of the electricity management model from a broad-based statistics to a refined analysis. By precisely distinguishing and independently recording the electricity data of each quadrant, the GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter can reveal the complete picture of electricity consumption for users, making the potential cost optimization nodes and energy efficiency improvement paths clearer and more distinguishable.

Quadrant Deconstruction and Refined Cost Traceability

The core principle of the four-quadrant power metering technology for electric energy measurement in GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meters is based on the precise classification of electric energy flow in the "P-Q coordinate system". The first quadrant specifically records the active electrical energy consumed by the user and the inductive reactive electrical energy, which represents the standard power consumption state of typical inductive loads such as electric motors. The second quadrant accurately measures the active electrical energy released by the user and the capacitive reactive electrical energy, which is common in capacitive loads or specific operating conditions. The third quadrant comprehensively records the active electrical energy fed back by the user to the power grid and the capacitive reactive electrical energy, which corresponds to the typical scenario of distributed photovoltaic power systems transmitting electrical energy to the power grid. The fourth quadrant precisely records the active electrical energy and inductive reactive electrical energy fed back by the user, which occurs more frequently in the operation mode where generators or specific power equipment return energy to the system.

This four-quadrant refined classification holds crucial practical significance in modern industrial electricity cost analysis. The current industrial electricity pricing system generally incorporates complex reactive power adjustment electricity mechanisms, whose calculation is directly related to the users' reactive power consumption levels. Additionally, the feed-in tariffs for distributed power generation differ significantly from traditional electricity prices. Taking a manufacturing enterprise with rooftop photovoltaic systems as an example, the GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter can clearly distinguish the forward electrical energy purchased from the grid by the enterprise and the reverse electrical energy fed back to the grid. It provides legally valid data evidence for precise electricity cost accounting and the assessment of photovoltaic power generation benefits. By simultaneously measuring the consumption of inductive reactive power and capacitive reactive power, this instrument can directly calculate the precise value of real-time power factor, thereby helping users accurately identify the root cause of the reactive power adjustment electricity charges.

Energy Efficiency Diagnosis to System Optimization Decision-Making

The four-quadrant power data essentially constitutes a precise diagnostic tool for the energy efficiency level and operational status of the power system. By continuously monitoring the proportional relationships and long-term trends of power in each quadrant, users can conduct systematic analyses of power energy efficiency. For instance, abnormal fluctuations in the active power energy in the first quadrant often correspond to the idle operation or inefficient operation of specific equipment, while the continuous high level of inductive reactive power energy in the first quadrant directly reflects the problem of a low power factor in the system, clearly indicating the necessity and urgency of installing reactive power compensation devices. The reverse active power energy data in the third and fourth quadrants reveal the actual situation of energy feedback or equipment regenerative braking energy, providing quantitative evidence for users to assess the potential for energy recovery and utilization. The energy-saving transformation decisions of enterprises can be firmly based on scientific quantitative analysis through the analysis insights provided by the GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter, ensuring that every energy-saving investment can achieve verifiable economic returns.

Fundamental Support for Empowering Smart Energy Management

In the process of developing intelligent power distribution systems and microgrid architectures, the four-quadrant metering data provided by the GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter builds an indispensable fundamental supporting element. These data not only serve for post-event electricity cost analysis and energy consumption auditing, but also provide key decision-making basis for real-time energy scheduling and optimization control. By leveraging the standard MODBUS-RTU communication protocol, real-time four-quadrant data can be seamlessly uploaded to the energy management platform, providing data support for advanced application scenarios such as intelligent switching of reactive power compensation devices, optimization of distributed power generation output, and precise load prediction. Thus, it promotes the strategic transformation of the power system from the traditional passive operation mode to the modern active optimization mode.

The Value Extension and Comprehensive Solutions of Geyue Electric

As a professional manufacturer specializing in power quality management in China, Geyue Electric promises that we will always strive to create core value for our customers through the dual technical paths of precise measurement and efficient governance. And the four-quadrant precise measurement capability provided by the GY1941-S Series LED LCD AC DC RS485 Single Phase Multifunctional Meter is the important technical foundation for us to fulfill this corporate commitment. This instrument not only helps users identify the deep-seated problems existing in the power consumption system, but also provides clear guidance for solutions to these problems.

Based on in-depth insights and precise analysis of users' electricity consumption characteristics, Geyue Electric can offer highly customized solutions for low-voltage reactive power compensation and comprehensive power quality management. When monitoring data reveals significant reactive power loss or abnormal power factor in the system, our self-developed series of static var generators can provide dynamic and precise compensation with millisecond response time, effectively eliminating the expenditure on reactive power adjustment fees and significantly enhancing the actual load capacity of transformers and power supply lines. For more complex harmonic pollution, three-phase imbalance and other combined power quality issues, we can provide systematic customized management solutions including active power filters.

Geyue Electric has always been committed to achieving the strategic goal of becoming a reliable energy efficiency partner for our customers. Starting with precise electricity consumption measurement, and relying on an efficient governance loop, we continuously assist users in systematically reducing electricity costs, significantly improving the reliability of equipment operation, and overall enhancing energy management levels. Let's work together, beginning with understanding the true value of every kilowatt-hour, and jointly build a more efficient, more economical, and more sustainable new pattern for electricity usage in the future.
