What To Do If There Is Not Enough Space In The Compensation Cabinet?

Preface

Insufficient space for compensation cabinets has become a common technical challenge in industrial power distribution system upgrades. With the expansion of production scale and the addition of equipment, the demand for reactive power compensation continues to grow, while the physical space available for existing compensation cabinets remains fixed. Faced with this dilemma, many companies face a dilemma: either invest the high cost of replacing the entire cabinet or endure the electricity bill penalties associated with substandard power factor. However, through scientific and rational technical solutions, it is possible to effectively increase compensation capacity without replacing the cabinet itself. This article systematically introduces three proven solutions to help you overcome space constraints.

Compact Custom Capacitors: The Preferred Solution for Space Optimization

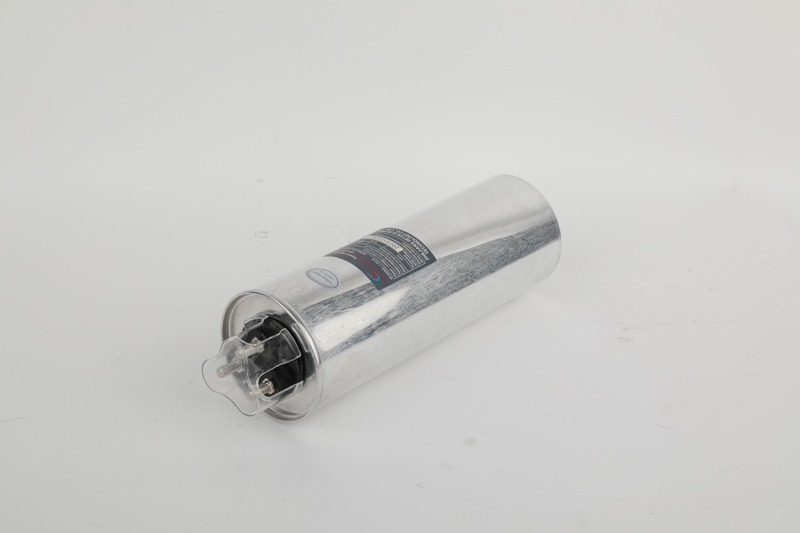

When standard-sized capacitors don't meet installation requirements, compact custom capacitors become the most direct solution. We've developed a series of custom cylindrical capacitors specifically for space-constrained applications. For example, our newly developed Φ180×320mm cylindrical capacitor achieves a 30kvar rated capacity while maintaining the same volume as a conventional 25kvar product. This breakthrough is the result of three technological innovations: the use of 3μm ultra-thin metallized polypropylene film increases the electrode area per unit volume by 20%; an optimized core winding process increases the fill factor to over 95%; and an improved end-face gold spraying process reduces contact resistance and heat generation. Practical applications have shown that this series of products maintains excellent electrical performance while keeping the temperature rise below 65K, fully meeting the requirements for long-term stable operation. They are particularly suitable for retrofitting older cabinets, enabling capacity upgrades without changing the existing mounting holes.

Intelligent Capacitor Integration Solution: The Smart Choice for Simplification

Intelligent capacitor technology offers a new approach to space optimization. Our intelligent integrated capacitor module integrates traditionally separate components such as controllers, contactors, fuses, capacitors, and indicator lights into a single unit. For example, a 30kvar intelligent capacitor measures only 300×200×150mm, saving over 40% space compared to traditional discrete component solutions. This integrated design not only reduces the number of components within the cabinet but also simplifies wiring complexity and minimizes the number of fault points. The intelligent capacitor's modular structure supports parallel expansion and hot-swappable maintenance, ensuring that a single module failure does not affect overall system operation. Furthermore, intelligent capacitors offer advanced features such as zero-crossing switching, phase compensation, and fault self-diagnosis, saving space while improving system performance. They are particularly suitable for new projects or comprehensive retrofits, enabling miniaturization and intelligent upgrades of compensation systems.

Optimizing Cabinet Layout: The Art of Exploiting Potential Space

In addition to optimizing equipment selection, effective cabinet layout design can also unlock significant space potential. Through extensive engineering practice, we have identified three proven layout optimization techniques. First, adopt a three-dimensional space utilization approach, changing the traditional flat layout approach. Using a DIN-rail mounting structure, components are stacked vertically to improve space utilization. Second, optimize wiring arrangements by using copper busbars instead of cables for busbar connections, reducing cable space. Adopting right-angle turn components and wall-mounting eliminates wasted space. Third, promote modular design, combining functionally related components into standard modules. For example, capacitors, series reactors, and fuses are integrated into a removable frame for easy maintenance and replacement. These detailed optimizations typically unlock 15%-25% of potential installation space, creating conditions for expansion and renovation.

Solution Selection and Implementation Recommendations

When faced with specific space constraints, the most appropriate solution should be selected based on the specific situation. For installations with extremely limited space and where changes to the cabinet structure are unfeasible, compact custom capacitor solutions should be prioritized. For new projects or those where major renovations are possible, Intelligent capacitor solutions offer the best overall benefits. When space constraints are less severe, layout optimization techniques can be used to address the issue, minimizing costs and simplifying implementation. Detailed on-site measurements and simulations are recommended before implementation to ensure the design is feasible. For important projects, it is recommended to first produce a trial sample for installation verification to avoid problems during mass implementation. During implementation, care should be taken to maintain sufficient heat dissipation space and safe distances, and equipment safety should not be sacrificed for the sake of space utilization.
