What Role do Reactors Play in Modern Power Systems?

Introduction

With the advancement of smart grid construction, reactors are also developing towards intelligence and miniaturization.

Significant advancements have been made in material selection, structural design, and manufacturing processes for new-type reactors. In practical applications, reactors need to be specifically designed according to specific system parameters and operating environments, which places high technical demands on manufacturers. With the continuous expansion of power systems, the importance of reactors in ensuring the safe operation of the power grid is becoming increasingly prominent. Our current reactors can meet the needs of various complex environments.

Technical Characteristics and Development Status

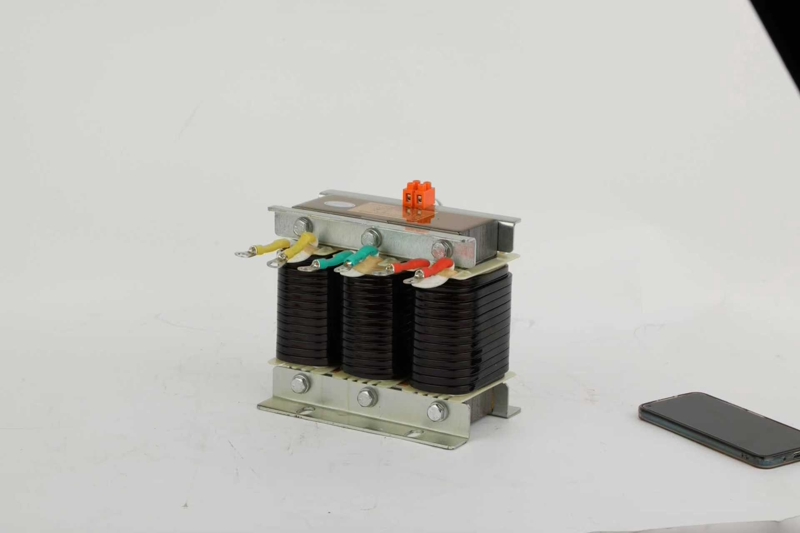

From the current development status, reactor technology is moving towards higher performance and higher reliability. The capacity range of series reactors is expanding, and we can now produce large reactors with voltage levels up to 500kV and capacities exceeding 100Mvar. Our recently commissioned production line has increased reactor production efficiency by 20%, resulting in more stable and reliable product quality.

Application Areas and Typical Cases

In transmission systems, series reactors are mainly used to limit short-circuit currents and improve voltage distribution. In distribution systems, reactors are commonly used for reactive power compensation and harmonic mitigation. Especially in the field of new energy power generation, reactors play a crucial role in photovoltaic power plants and wind farms. Series reactors effectively suppress harmonics in the power grid, improve power quality, and ensure the stable operation of new energy power generation equipment. The series reactors we provided to a photovoltaic power station have operated without failure for three years.

Many factors need to be considered when selecting reactors. First, the basic parameters must be determined based on the system voltage and current, and then the reactor's reactance rate must be checked to ensure it meets requirements. The temperature and humidity of the installation environment also affect the selection. When selecting series reactors, special attention should be paid to their thermal and dynamic stability to ensure safe operation under fault conditions. In some special applications, such as the metallurgical and chemical industries, the reactor's corrosion resistance and explosion-proof requirements must also be considered. Last year, we customized a new type of reactor for a chemical plant, which featured enhanced corrosion protection and performed very well.

Production Process and Quality Control

Our factory has over twenty years of experience in reactor production. Our production line uses advanced winding and vacuum impregnation equipment to ensure that every product meets standards. We have established a comprehensive quality management system with strict inspection standards at every stage of production. From raw material intake to finished product delivery, the reactor undergoes more than ten inspection processes. Especially for critical equipment like Series Reactors, we also conduct type tests and special tests to ensure performance fully meets standards. Specialized lifting tools must be used during hoisting to avoid damaging the equipment. Wiring must be performed according to the drawings to ensure reliable connections and correct phase sequence. Special attention must be paid to phase-to-phase and phase-to-ground distances during Series Reactor installation to ensure safety standards are met.

Summary

After more than two decades of development, reactors have become an indispensable key component in modern power systems. Series Reactors, with their superior technical performance and reliable product quality, play an increasingly important role in the stable operation of power systems. From their initial basic functions to today's intelligent upgrades, reactor technology has consistently kept pace with the evolving needs of the power industry. Our factory ensures that every Series Reactor leaving the factory meets the actual needs of our users through continuous technological innovation and rigorous quality control. With the rapid development of the new energy industry and the deepening of smart grid construction, the application prospects of Series Reactors in future power systems will be even broader. We will continue to dedicate ourselves to product research and development and technological upgrades, providing the power industry with higher quality and more reliable Series Reactor products, contributing to the construction of a safer, more efficient, and greener modern power system.
