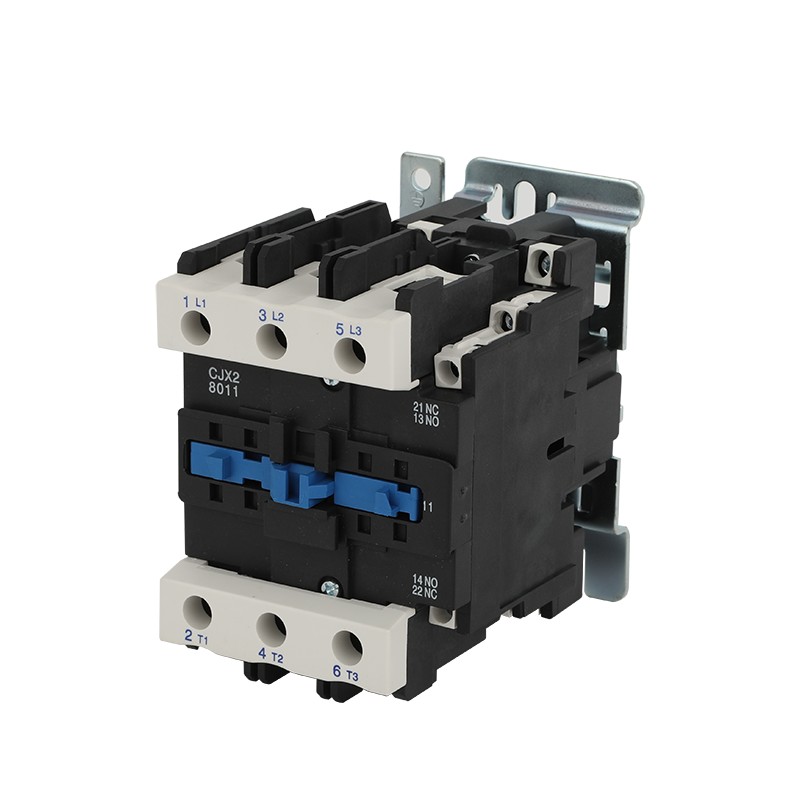

CJX2 Series AC Magnetic Contactor for AC Motor
Model:CJX2 Series/ LC1 Series
CJX2 Series AC Magnetic Contactor for AC Motor produced by Geyue Electric, also known as the LC1 series AC magnetic contactor, is used for making and breaking circuits remotely and for frequently starting and controlling AC motors. It is well-suited to work in the power system with a rated voltage of up to AC 380V under the use category of AC-3.
This product is in strict accordance with the GB/T14048.4, IEC 60947-4-1 and JB/T 7435 Standards.
This product is in strict accordance with the GB/T14048.4, IEC 60947-4-1 and JB/T 7435 Standards.
The Geyue Electric CJX2 Series AC Magnetic Contactor for AC Motor, which represents a significant upgrade of the French LC1-D series AC magnetic contactor prototype, can flawlessly substitute imported products. Specifically, the Geyue Electric CJX2 Series AC Magnetic Contactor for AC Motor, is primarily employed in AC 50Hz (or 60Hz) circuits, with a voltage reaching up to 660V and a current capacity of up to 95A. It is ingeniously designed to remotely connect and disconnect the circuit, as well as to frequently initiate and control the operation of AC motors. Besides, our AC Magnetic Contactor for AC Motor has the flexibility to be combined with a suitable thermal relay to form an electromagnetic starter. This combination serves as an effective safeguard for circuits where the possibility of operating overload exists, ensuring the stability and reliability of the entire electrical system.
This Geyue Electric CJX2 Series AC Magnetic Contactor for AC Motor is of a protected type, and its action structure is of direct action with double break contact. This remarkable AC contactor showcases a series of advantages that make it useful and desirable. Firstly, it boasts a compact size, which enables it to be installed and utilized in various confined spaces without causing any inconvenience. Secondly, its lightweight nature not only simplifies handling and transportation but also reduces the overall load in the application system. Moreover, it features low power consumption, which contributes to energy savings and cost-effectiveness in the long run. Another notable aspect is its long service life, ensuring consistent and reliable performance over an extended period. Last but not least, the product is characterized by safety and reliability, providing users with peace of mind and guaranteeing the smooth operation of the associated systems and processes.
The Geyue Electric CJX2 Series AC Magnetic Contactor for AC Motor possess the outstanding ability to be shaped into mechanical reversible interlocking magnetic starters and star-delta starters. This offers a broad spectrum of choices for diverse applications and operational demands. Furthermore, users have the freedom to incorporate auxiliary contact groups or air delay contact groups into the line based on their particular requirements. This customizable characteristic enables a more individualized and precise configuration to satisfy the distinct needs and conditions of different systems and setups.
This Geyue Electric CJX2 Series AC Magnetic Contactor for AC Motor is of a protected type, and its action structure is of direct action with double break contact. This remarkable AC contactor showcases a series of advantages that make it useful and desirable. Firstly, it boasts a compact size, which enables it to be installed and utilized in various confined spaces without causing any inconvenience. Secondly, its lightweight nature not only simplifies handling and transportation but also reduces the overall load in the application system. Moreover, it features low power consumption, which contributes to energy savings and cost-effectiveness in the long run. Another notable aspect is its long service life, ensuring consistent and reliable performance over an extended period. Last but not least, the product is characterized by safety and reliability, providing users with peace of mind and guaranteeing the smooth operation of the associated systems and processes.
The Geyue Electric CJX2 Series AC Magnetic Contactor for AC Motor possess the outstanding ability to be shaped into mechanical reversible interlocking magnetic starters and star-delta starters. This offers a broad spectrum of choices for diverse applications and operational demands. Furthermore, users have the freedom to incorporate auxiliary contact groups or air delay contact groups into the line based on their particular requirements. This customizable characteristic enables a more individualized and precise configuration to satisfy the distinct needs and conditions of different systems and setups.
Hot Tags: AC Magnetic Contactor for AC Motor
