What does the "D/kVar" Value of a Capacitor Tell Us about Its Energy Density and Physical Size?

During the selection process of low-voltage reactive power compensation equipment, a specialized parameter named "D/kVar" has been introduced and is becoming a key indicator for evaluating the technical level of capacitors. This seemingly simple numerical value contains important information about the technical strength and space efficiency of capacitors. Accurately understanding the deeper meaning of the "D/kVar" value will help us make the most informed technical decisions among the numerous low-voltage reactive power compensation devices.

An Accurate Scale of Energy Density

The essence of the D/kVar value lies in the theoretical minimum volume that the dielectric material (such as metallized polypropylene film) inside the capacitor must occupy when the capacitor design is finalized, in order to provide each 1 kVar of reactive power capacity. The D/kVar value is inversely proportional to the energy density of the capacitor. The smaller the D/kVar value is, the fewer raw materials the manufacturer needs to store the same amount of electricity. This advancement is not merely a simple cost optimization; it is a concentrated manifestation of breakthroughs in dielectric material technology and manufacturing processes. It reflects the withstand voltage strength of the metallized polypropylene film, the rationality of the electrode structure, and the perfection of the vacuum impregnation process. Just as electronic devices evolve from large computer rooms to portable terminals, the low D/kVar value is a clear signal that capacitor technology is moving towards efficient and intensive development.

The Design Basis of Physical Size

Although the final shape of the capacitor is still influenced by heat dissipation requirements and protective structures, the D/kVar value remains the core factor determining its physical dimensions. Under the same rated capacity, capacitor core groups with a lower D/kVar value will inevitably have a more compact physical structure. This improvement in space efficiency creates necessary conditions for the miniaturization and modularization of compensation equipment, making it possible to deploy larger compensation capacity within limited distribution space. Especially in today's intelligent distribution systems that pursue high-density layout, the lower D/kVar value directly translates into effective savings of space resources and flexibility in the overall solution deployment.

The Solutions and Professional Commitment of Geyue Electric

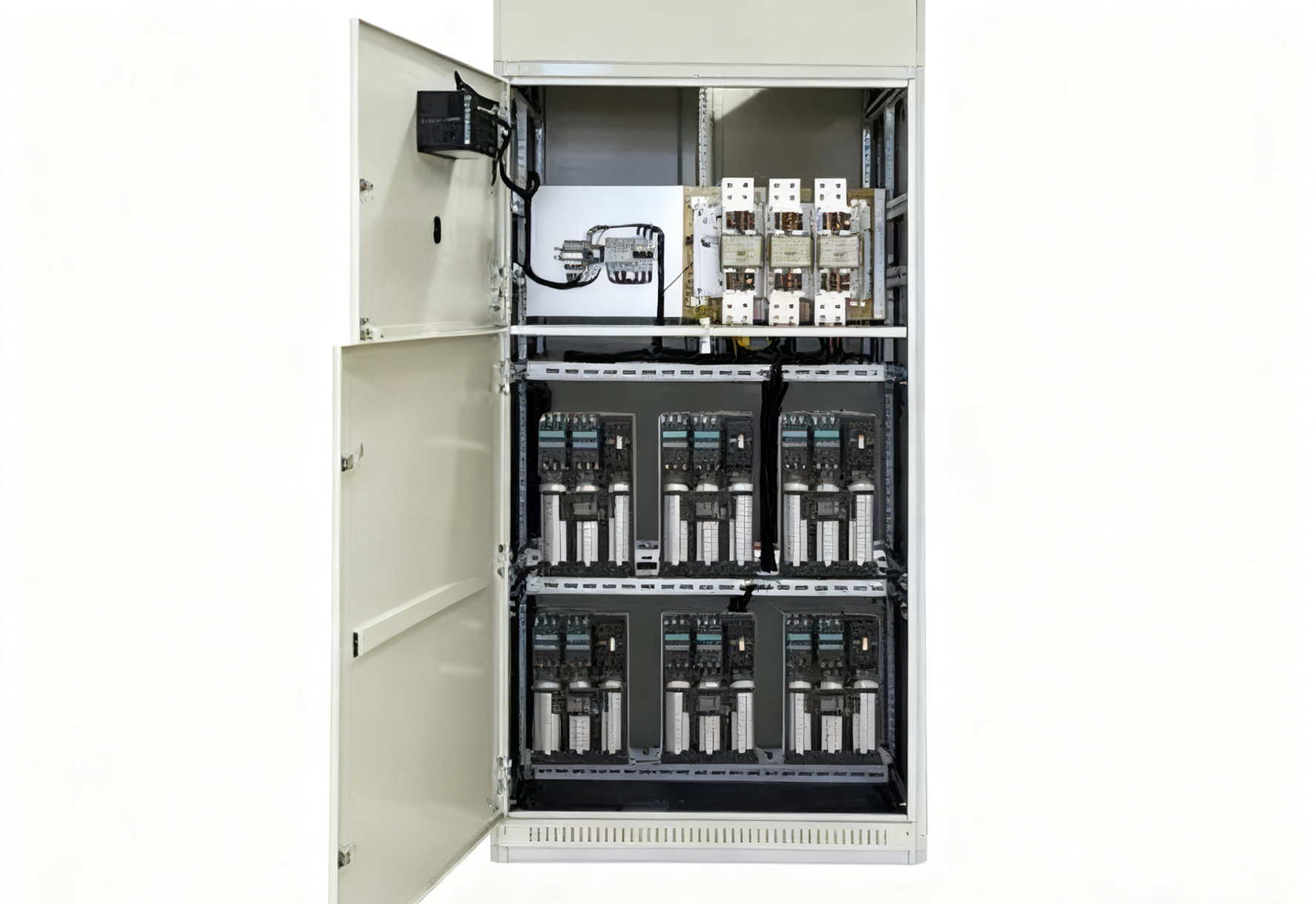

At Geyue Electric, we have always regarded reducing the D/kVar value of capacitors as an unwavering pursuit in the development of low-voltage reactive power compensation equipment. Employing imported high-purity polypropylene raw materials and injecting innovative metallization coating technology, our capacitors not only ensure their own safety margin but also significantly enhance their own energy density. This advantage in terms of energy density and physical size enables Geyue Electric's capacitors to achieve a more compact space utilization at the same capacity, providing system integrators and power system managers with greater freedom and flexibility in compensation combinations. The low-voltage reactive power compensation portfolio equipped with the optimized D/kVar capacitors not only meets the strict requirements for space utilization in modern distribution systems, but also ensures a perfect balance between the compensation efficiency and the service life of the capacitors.

Geyue Electric fully agrees with this consensus in the power industry: excellent power equipment must embody the craftsmanship of a master in every detail. Therefore, our company has always been committed to providing power system managers with compact, efficient, stable and reliable low-voltage reactive power compensation products through solid material research and process innovation. Please send your requirements to info@gyele.com.cn. Our technical team will wholeheartedly provide you with caring services and professional strength to create more intelligent, more intensive and more sustainable value for your power system.
