Intelligent Reactive Power Auto Compensation Controller
Geyue Electric is a China Manufacturer & Supplier of Intelligent Reactive Power Auto Compensation Controller. It offers high compensation accuracy, automatic power factor correction, and IP40 protection. Our R&D team ensures JB/T 9663-2013 compliance and reliable performance.

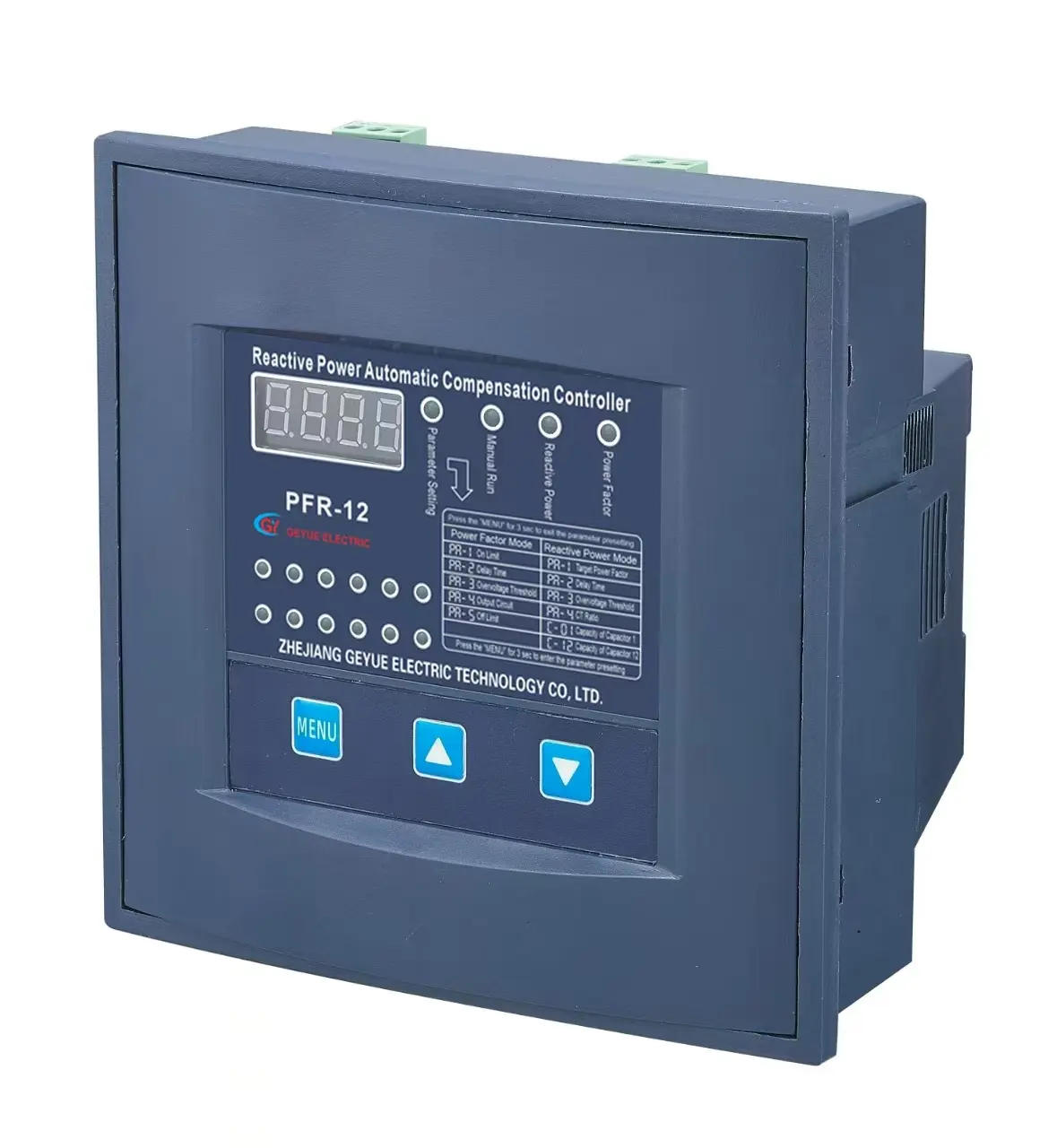

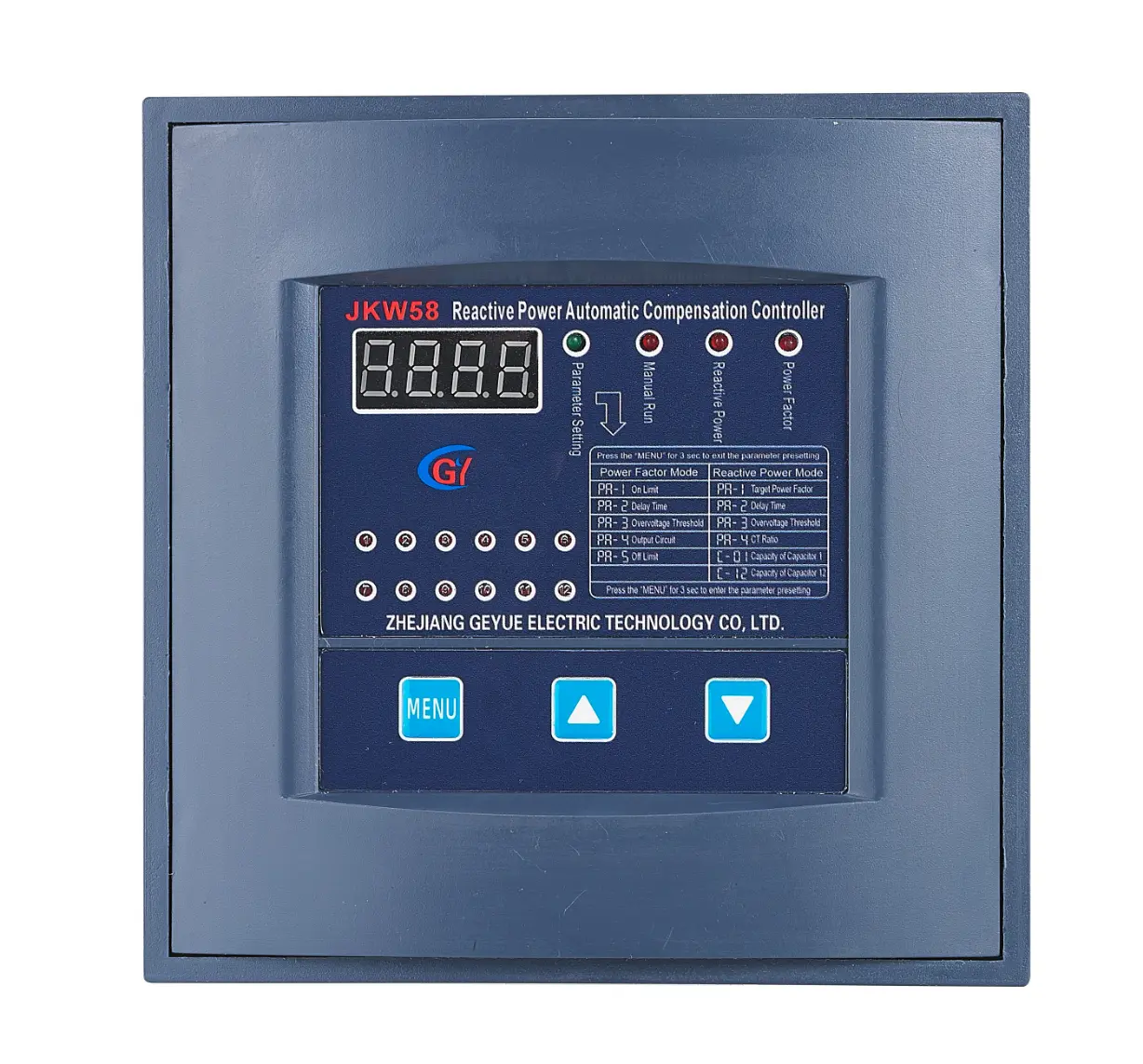

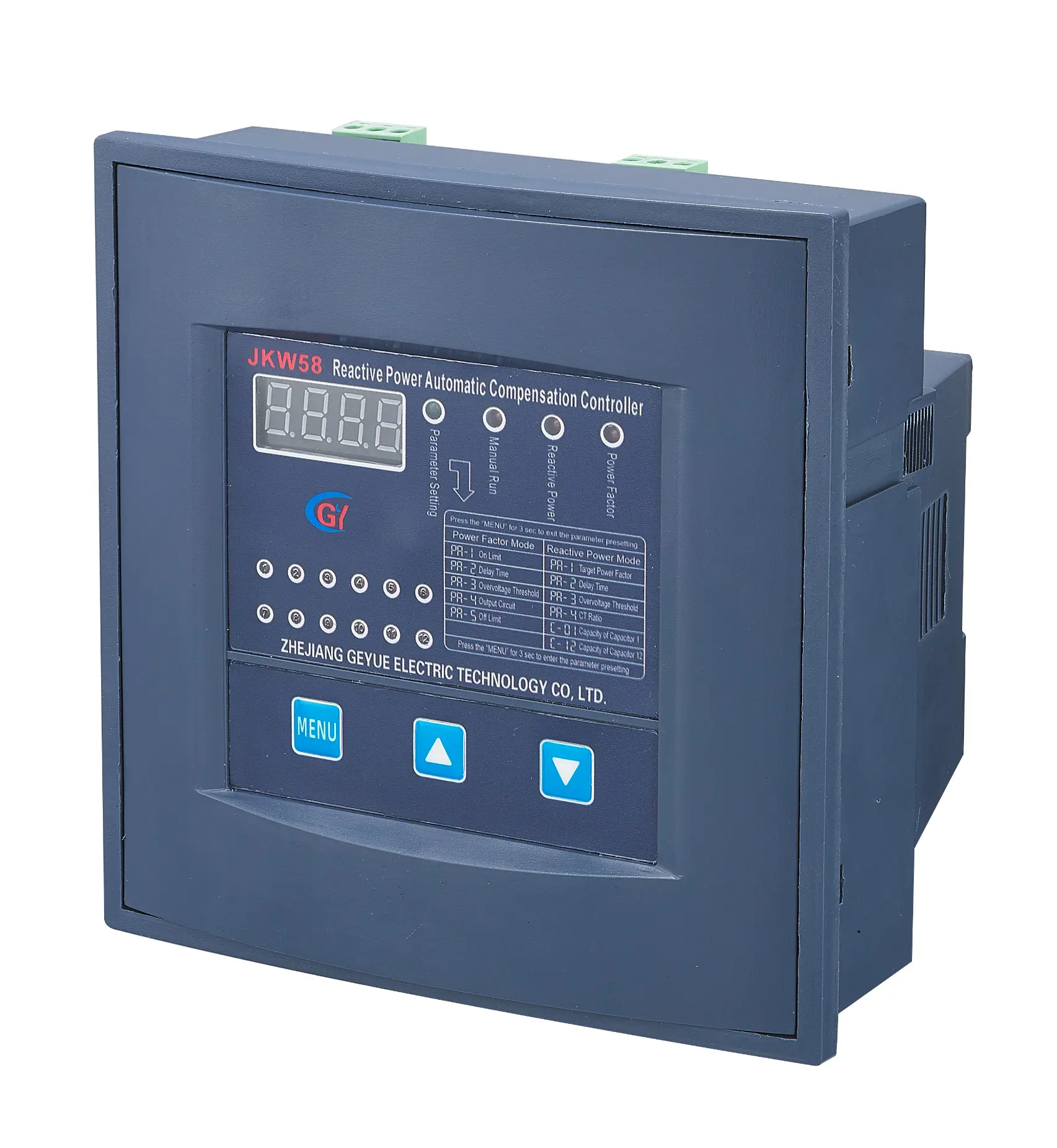

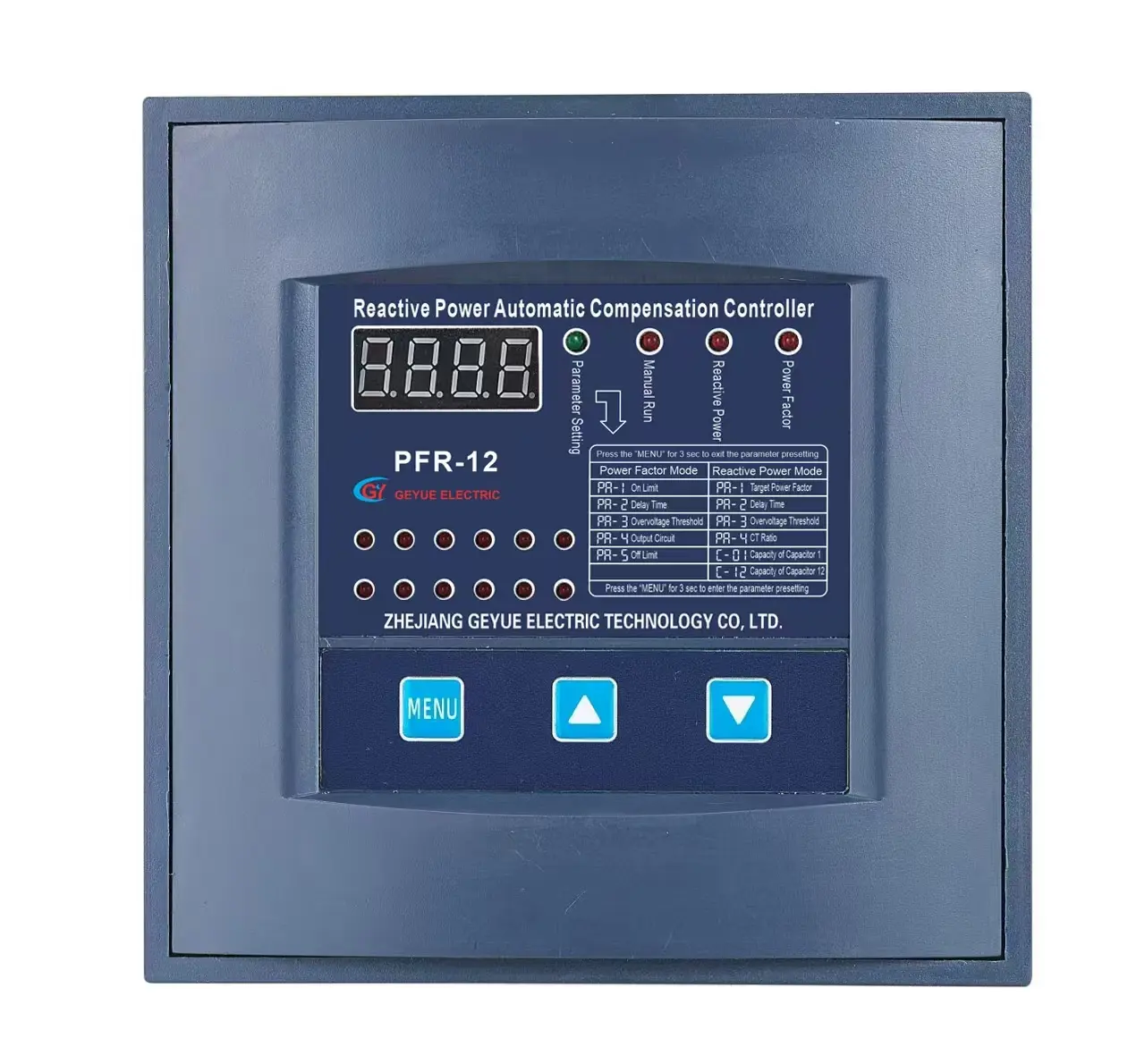

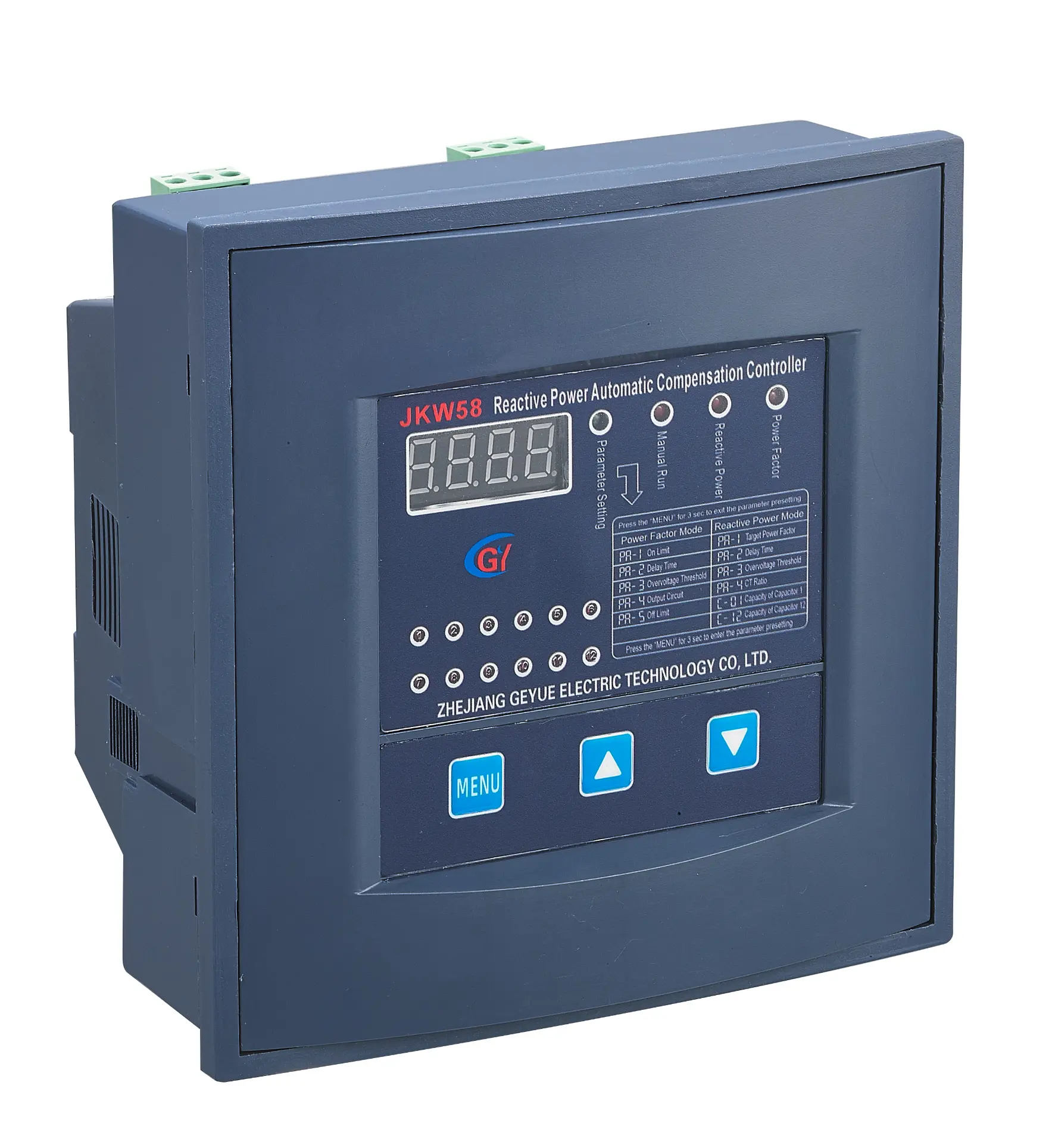

1. Model: JKW58 / PFR-12
2. Mounting Dimensions: 138×138mm
3. Output Steps: 12 steps
4. Two Control Modes: Power factor mode, Reactive power mode.
5. Two Working Modes: Automatic operation, Manual operation.
The Intelligent Reactive Power Auto Compensation Controller (also known as PFR-12 Series) is independently designed by Geyue Electric. This product is specifically engineered for automatic capacitor compensation in low-voltage distribution systems. The device monitors system voltage, current, and power factor in real time. It automatically controls the switching of capacitor banks to maintain the user's target power factor. This process improves power transformer utilization, reduces line losses, and enhances power supply quality. It is suitable for low-voltage power distribution systems with AC 220V/380V, 50Hz.
Core Advantages
Independent R&D and Standard Compliance
Geyue Electric independently developed this controller. It strictly complies with the JB/T 9663-2013 standard. Our team provides robust technical support for practical power distribution challenges.
Automatic Power Factor Correction
The Intelligent Reactive Power Auto Compensation Controller features high measurement accuracy. It supports both power factor control mode and reactive power control mode. The controller allows for precise capacitor bank switching without oscillations.
Improved Power Distribution Performance
This product significantly improves power distribution performance. It enhances power transformer utilization and reduces line losses. It also brings better economic and social benefits to users.
Convenient Installation and Operation

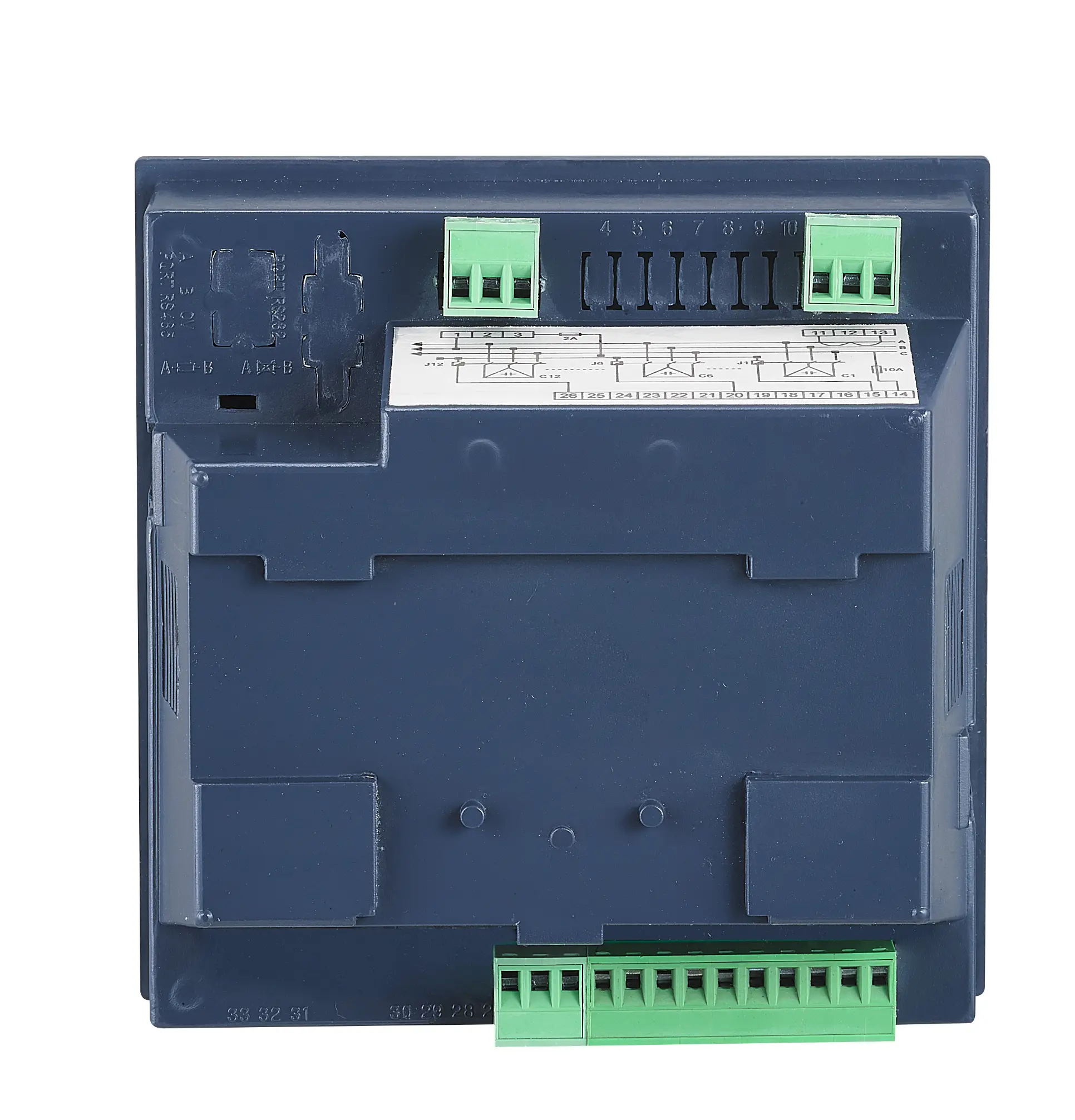

The controller features a 138mm × 138mm mounting size. It offers a user-friendly English interface and digital parameter adjustment. The initial phase can be preset to reduce field wiring inconveniences.
Protection for Practical Applications
The controller provides overvoltage protection and undervoltage protection. It includes a power fail safeguard to prevent data loss. The enclosure protection grade reaches IP40.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | AC 220V/380V 50Hz |
| Rated Current | AC 0-5A 50Hz |
| Output Contact Capacity | AC 0-5A 50Hz |
| Displayed Power Factor | Lag 0.001 - Lead 0.001 |
| Measured Reactive Power | 0-9999 kvar |
| Undervoltage Protection Value | 300V |
| Control Mode | Auto optimization / Cyclic switching |
| Sensitivity | 60mA |
| Protection Degree | Shell IP40 |
| Mounting Dimension | 138mm × 138mm |
| Output Steps | 12 steps |
| Working Temperature | -25℃ to +50℃ |
| Altitude | ≤ 2500 meters |
Quality Assurance and Services
Geyue Electric provides an 18-month warranty for the Intelligent Reactive Power Auto Compensation Controller. We offer customized specifications such as oscillation locking and 220/110V, 60Hz options. Our engineering team provides continuous support for remote diagnosis and fault handling. Customers can rely on our responsive team to resolve practical issues such as harmonic interference, switching inrush currents, and voltage fluctuations.
Frequently Asked Questions (FAQ)
Q1:What is the difference between the power factor control mode and the reactive power control mode?
A1: The Intelligent Reactive Power Auto Compensation Controller operates in these two modes based on the PA-4 parameter setting. The power factor mode is preset at the factory and is suitable for standard applications. The reactive power mode provides precise control of capacitor bank switching without oscillations, which is especially suitable for large-capacity scenarios. However, users must input the actual CT ratio and capacitor capacity in this mode.
Q2:Why does the controller display "C-0" during operation?
A2: The controller displays "C-0" when the signal current input is too small (less than 60mA) or absent. Users should check if the current transformer ratio selection is reasonable. Users must also verify that the current signal circuit has no open circuit or other instruments connected in series.
Q3:Why does a capacitor bank never get switched on in reactive power mode?
A3: A capacitor bank is never switched on in reactive power mode when its capacity parameter is preset to "0" or set too large. Users can resolve this issue by resetting the capacity parameter correctly in the controller's menu.
Q4:Does Geyue Electric offer customized specifications for this product?
A4: Yes, Geyue Electric provides customized specifications such as oscillation locking, 220/110V voltage, and 60Hz frequency. Our engineering team can tailor the controller to meet your specific distribution system requirements.
Q5:What is the minimum order quantity (MOQ) for this controller?
A5: Our standard minimum order quantity is typically 1 piece for sample evaluation. However, we offer competitive wholesale pricing for bulk orders. Please contact our sales team for specific MOQ requirements based on your project needs.
Q6:What is the delivery time for bulk orders?
A6: The delivery time usually ranges from 7 to 15 working days after receiving the deposit. It depends on the order quantity and specific customization requirements. We will provide an exact lead time upon order confirmation.
Q7:What kind of warranty and after-sales support do you provide?
A7: Geyue Electric offers an 18-month warranty for the Intelligent Reactive Power Auto Compensation Controller. Within 3 months from the date of shipment, we promise to replace the old machine with a new one for any quality problems. We also provide continuous engineering support for remote diagnosis, parameter setting, and fault handling.
Q8:Are you a manufacturer or a trading company?
A8: Geyue Electric is a professional manufacturer dedicated to independent research and continuous innovation of low-voltage reactive power compensation technologies. We have a highly experienced engineering team specializing in power electronics, electrical automation, and field applications.
