FAQ 1: What do BSMJ and BSMJ(Y) Respectively Represent?

In the field of low-voltage reactive power compensation, power capacitors are core components, and their series designations often contain their own identity codes. Many customers are often confused when faced with the almost identical series designations "BSMJ" and "BSMJ(Y)" in our product catalog: what do BSMJ and BSMJ(Y) actually mean? As a technician from Geyue Electric, today I will explain the meaning and differences behind these two series designations from a manufacturer's perspective, helping you to more accurately find the power capacitor that best matches your site's low-voltage reactive power compensation needs.

The National Standard Meaning of BSMJ

While Chinese national mechanical industry standards do not explicitly specify the exact series designation for low-voltage self-healing shunt capacitors, they do strictly regulate how manufacturers should name a series of power capacitors using letter arrangements. BSMJ is simply a common power capacitor series designation that conforms to industry standard naming rules.

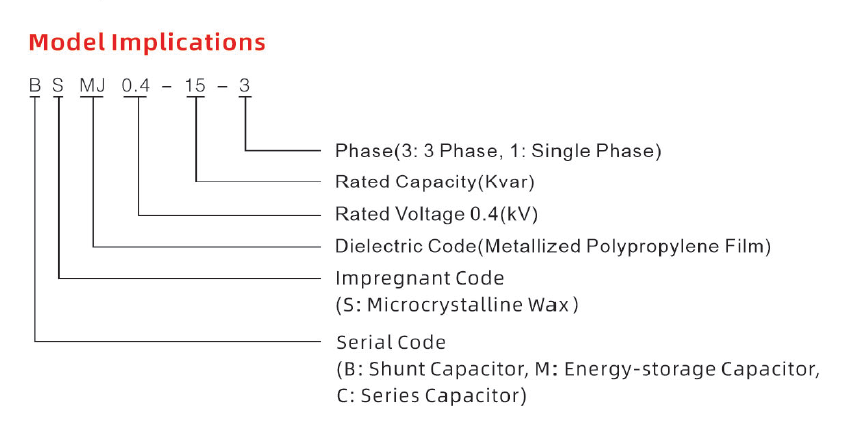

JB/T 7114, "Method for Compiling Product Model Numbers for Power Capacitors," strictly defines the composition method of power capacitor series designations and the meaning of each letter, enabling industry professionals to understand the technical characteristics of a product simply by seeing a particular series designation from a manufacturer. For example, it specifies:

The first letter B represents "shunt capacitor," indicating that the capacitor is connected in parallel in the power system, primarily for reactive power compensation; the second letter S indicates that the impregnating medium is "paraffin wax" or "microcrystalline wax," a stable and environmentally friendly impregnating agent that effectively improves the capacitor's withstand voltage and heat dissipation performance; and the third and subsequent letters MJ represent "metallized polypropylene film," a key material for the capacitor's inter-electrode dielectric, possessing self-healing properties and automatically restoring insulation when local breakdown occurs.

When a manufacturer completely follows this rule to produce a shunt capacitor using microcrystalline wax impregnation and metallized polypropylene film dielectric, the resulting series designation is naturally BSMJ. Therefore, the BSMJ series has become one of the most widely used, most compliant with Chinese national machinery industry standard naming rules, and most recognized low-voltage self-healing shunt capacitor series designations in the Chinese market over the years.

Within Geyue Electric's product portfolio, the BSMJ series designation is specifically assigned to represent square-box type low-voltage self-healing shunt capacitors. This square-box shaped structure uses high-quality tinplate, featuring a clean, square appearance and compact internal component arrangement, making it particularly suitable for installation in conventional low-voltage distribution cabinets.

The advantage of square-box type capacitors lies in their regular shape, facilitating the side-by-side installation of multiple units and maximizing cabinet space utilization. Furthermore, square-box type capacitors incorporate advanced zinc-aluminum composite metallized film, coupled with overvoltage explosion-proof devices, ensuring excellent stability and safety during long-term operation. Whether used in traditional reactive power compensation cabinets or intelligent capacitor modules, the BSMJ series square-box type capacitors can be perfectly compatible.

The Derivative BSMJ(Y) and Its Cylindrical Characteristic

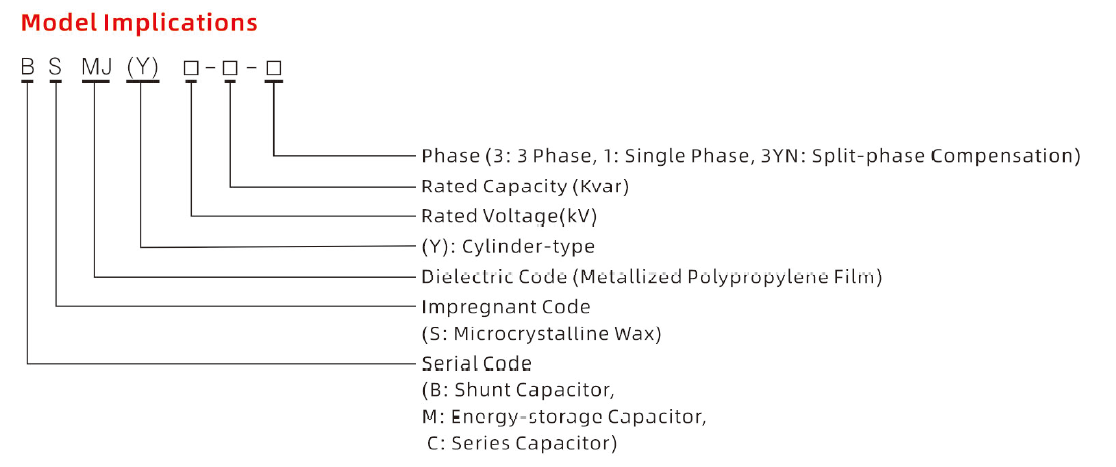

With the increasing demands for miniaturization and high heat dissipation in power distribution equipment, Geyue Electric has innovated its structure based on the standard BSMJ series square-box type self-healing shunt capacitors, developing cylindrical type self-healing shunt capacitors. To clearly distinguish the cylindrical type capacitors from the square-box type capacitors, we follow industry practice by adding the suffix (Y) to the end of the series designation, where Y represents "cylindrical," thus forming the new series designation BSMJ(Y).

The BSMJ(Y) cylindrical type low-voltage self-healing shunt capacitors have the same core technical parameters as the BSMJ series box-type low-voltage self-healing shunt capacitors, also adhering to national standards and employing metallized polypropylene film and microcrystalline wax impregnation processes. The main difference lies in the casing structure: the cylindrical aluminum casing uses a one-time stretching molding process, without welds, resulting in higher mechanical strength and better heat dissipation performance. This structure leads to lower internal temperature rise and more reliable operation, making it particularly suitable for use in high-temperature environments or space-constrained applications.

The cylindrical shaped structure also brings another advantage to the self-healing shunt capacitors: the aluminum shells themselves have good explosion-proof performance, and together with the pressure explosion-proof devices on the top, they can cut off the internal connection in time under abnormal circumstances, maximizing the safety of equipment and personnel.

The Manufacturing Strength and Quality Guarantee of Geyue Electric

As a professional manufacturer of low voltage reactive power compensation components, Zhejiang Geyue Electric Co., Ltd. has focused on the field of power capacitors since our establishment in 2011. Our factory is located in Liushi Town, Yueqing City, and boasts a modern production workshop of over 600 square meters.

Here, we have introduced a series of advanced production equipment, including fully automated winding machines, automated welding equipment, and vacuum impregnation systems. From the slitting of the metallized film to the assembly of finished products, every process undergoes strict quality control. We have a professional capacitor laboratory that can conduct full-performance testing on our products, including withstand voltage testing, capacitance decay testing, and aging life testing, ensuring that our products meet or exceed national standards.

Based on our years of manufacturing experience, Geyue Electric would like to recommend our core product series for different application scenarios:

The BSMJ series square-box type low-voltage self-healing shunt capacitors are suitable for conventional power distribution systems, such as reactive power compensation cabinets in factory workshops, commercial buildings, and residential communities. Their square design facilitates modular assembly within standard cabinets, and individual capacities range from 5kvar to hundreds of kvar, meeting most conventional compensation needs. This series of product offers high cost-effectiveness and easy maintenance, making it an ideal choice for general applications.

The BSMJ(Y) cylindrical low-voltage self-healing shunt capacitors are more suitable for applications with higher requirements for space and heat dissipation, such as new energy power plants, locations with concentrated frequency converter equipment, and high-temperature workshops. The excellent heat dissipation performance provided by the cylindrical casing allows it to maintain stable operation even in environments with high harmonic content. Individual capacities range from 5kvar to 50kvar, and its compact size provides more installation possibilities for compact switchgear.

Regardless of which product you choose, Geyue Electric can provide one-stop customized power quality solutions and full product lifecycle technical support. Our engineering team can offer precise compensation capacity calculations and selection recommendations based on your actual load conditions, ensuring that every capacitor performs optimally in your application scenario.

From the meaning of the letters in the model number to the actual application of the product, the difference between BSMJ and BSMJ(Y) ultimately boils down to their structural form, while they share Geyue Electric's unwavering pursuit of product quality. In the seemingly traditional field of power compensation, Geyue Electric consistently safeguards the efficient use of every kilowatt-hour of your electricity through innovative processes and rigorous manufacturing. You can find our professional engineers at info@gyele.com.cn.
