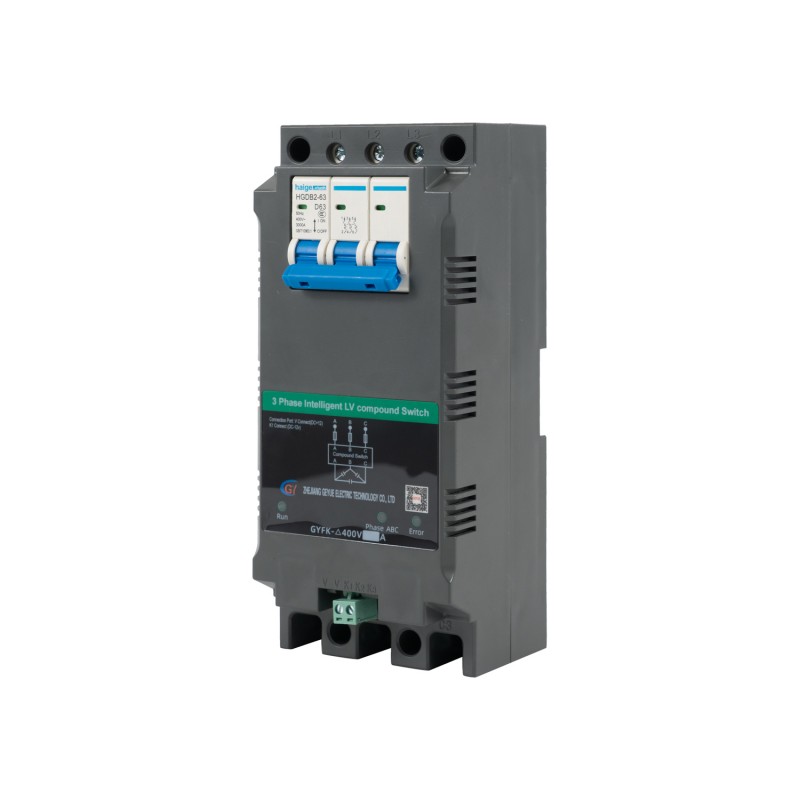

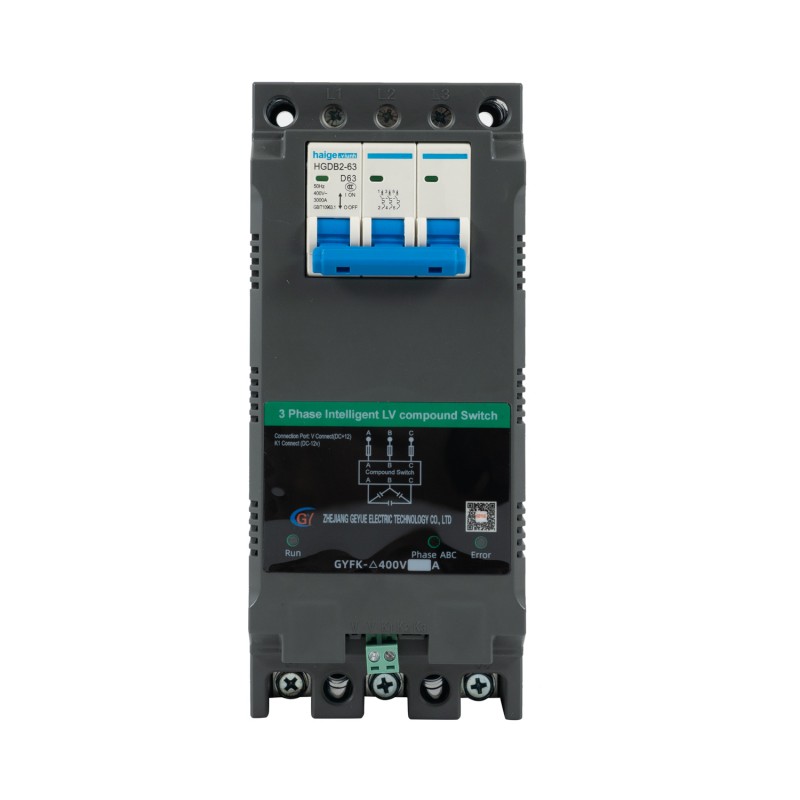

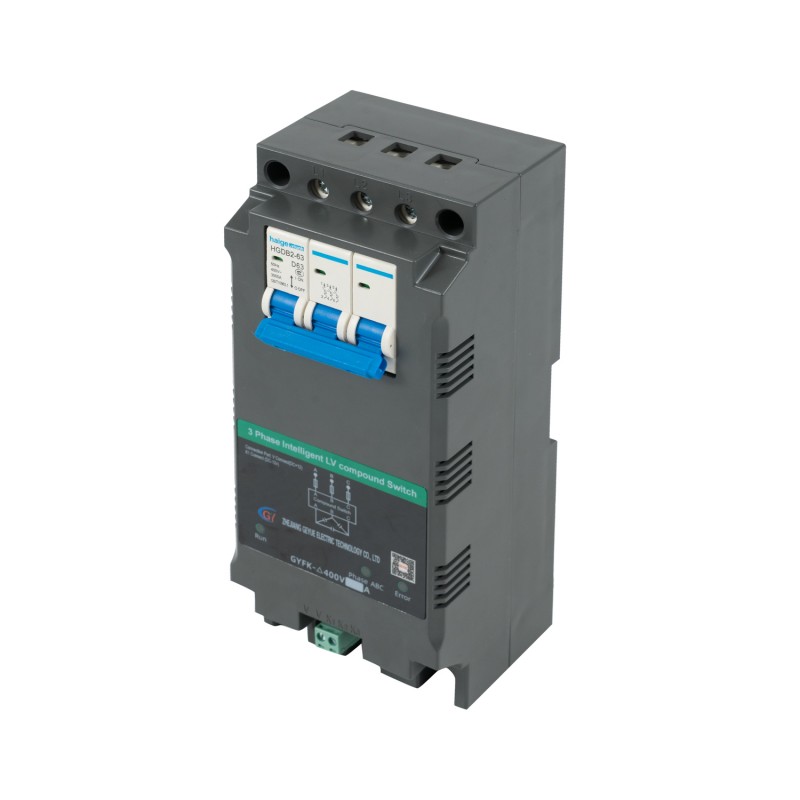

GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch

As an industry expert in the field of low-voltage reactive power compensation, Geyue Electric fully understands the significance of every electrical detail for the safe and stable operation of low-voltage reactive power compensation systems. When it comes to the switching devices for power factor capacitors - the compound switches, many of our users often encounter a question: Should they choose the GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch or the one without the MCB DZ47? Today, from the perspective of professional manufacturing, we will deeply analyze the essential differences between these two options for you, helping you make an informed decision for your low voltage reactive power compensation system.

The core difference lies in functional integration and system architecture

The fundamental difference between the GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch and the composite switch without the MCB DZ47 lies not in the presence or absence of accessories, but in the internal and external integration of protection functions. This directly determines the integration level, safety logic and installation form of the composite switches you purchase and install.

The GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch is a highly integrated intelligent protection-type control unit. It integrates advanced semiconductor zero-crossing switching technology, magnetic holding relay, and micro circuit breaker into one. It not only shoulders the mission of switching on/off capacitors, but also bears the responsibilities of short-circuit protection and overload protection for the lines. This integrated design makes the compound switch a fully functional independent module.

The compound switch without the MCB DZ47 is merely an execution component dedicated to precise switching. It does not have the ability to interrupt fault currents on its own. Its safe operation is entirely dependent on the external series-connected independent circuit breaker or fuse. The compound switch without the MCB DZ47 plays a specialized role in the low-voltage reactive power compensation system, but it requires an external component to work together to form a safe circuit.

Different choices have different impacts on engineering practices

The fundamental differences between the GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch and the compound switch without the MCB DZ47, in terms of "functional integration mode" and the resulting "system architecture hierarchy", will directly affect all aspects of your low-voltage reactive power compensation system's engineering design, installation, operation and maintenance, as well as its long-term benefits.

In terms of system design and cabinet layout, the highly integrated GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch will demonstrate overwhelming advantages. It evidently simplifies the electrical schematic diagram, reduces the number of discrete components, thereby making the internal layout of the low-voltage reactive power compensation cabinet more compact, clear and tidy. For the assembly plant and the installation team, this means a substantial reduction in wiring workload, an obvious decrease in wiring error rate, a notable increase in production efficiency, and a more optimized cooling space within the cabinet.

In terms of safety and reliability, the highly integrated design of the GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch brings about a deep coordination and consistent guarantee in timing, action and performance between the "protection features" and the "control logic". The DZ47 miniature circuit breaker built into the compound switch and the control module of the compound switch have been designed and tested for compatibility by the manufacturer. This ensures that their protection characteristics and control timing can work well together at the time of production. However, in the discrete solution, the protection effect highly depends on the accuracy of the external circuit breaker selection by the system designer, thereby generating a certain risk of incorrect matching.

In terms of long-term operation and maintenance costs, the GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch with highly integrated modules has a greater ability to control the "overall cost during the entire system lifecycle". The highly integrated compound switch adopts a modular plug-in design. In case of a failure, maintenance personnel can quickly complete the overall replacement like replacing a circuit breaker, significantly reducing the power outage time. However, in the discrete solution, the fault analysis is more complex. It requires first separately checking whether it is a switch failure or a protection device failure, and the replacement process is cumbersome, with higher requirements for the skills of maintenance technicians.

Please seek for professional solutions of Geyue Electric

Based on a profound understanding of the industry and a precise grasp of customer needs, Geyue Electric firmly recommends and adopts a highly integrated and integrated design concept. We are well aware that providing customers with stable, safe and maintenance-free products is the key to reducing the total cost of the system throughout its life cycle.

Therefore, our company has dedicatedly launched the GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch. This product perfectly integrates the built-in DZ47 miniature circuit breaker and is the result of our integrated thinking.

This GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch precisely controls the coordinated operation of the power electronic circuit and the magnetic holding relay through an intelligent chip, achieving zero-voltage conduction and zero-current interruption. This fundamentally eliminates the surge current during switching and the operational overvoltage. It not only protects the capacitor bank but also significantly extends the lifespan of the switch itself, ensuring that the equipment can operate without maintenance for a long time.

All the external control signals of this GYFK-Δ400V Three-Phase Compensation MCB DZ47 Three Phase Intelligent Low Voltage Compound Switch are isolated by photoelectric means. The internal microprocessor continuously monitors the switch status, power supply and load conditions, and has comprehensive power failure, no-load and phase loss protection functions. It has extremely strong anti-interference ability and can work stably even in complex industrial electromagnetic environments. In addition, its three-phase three-wire control design does not require the connection of the neutral wire, which greatly simplifies the on-site wiring and avoids potential faults caused by poor contact of the neutral wire.
