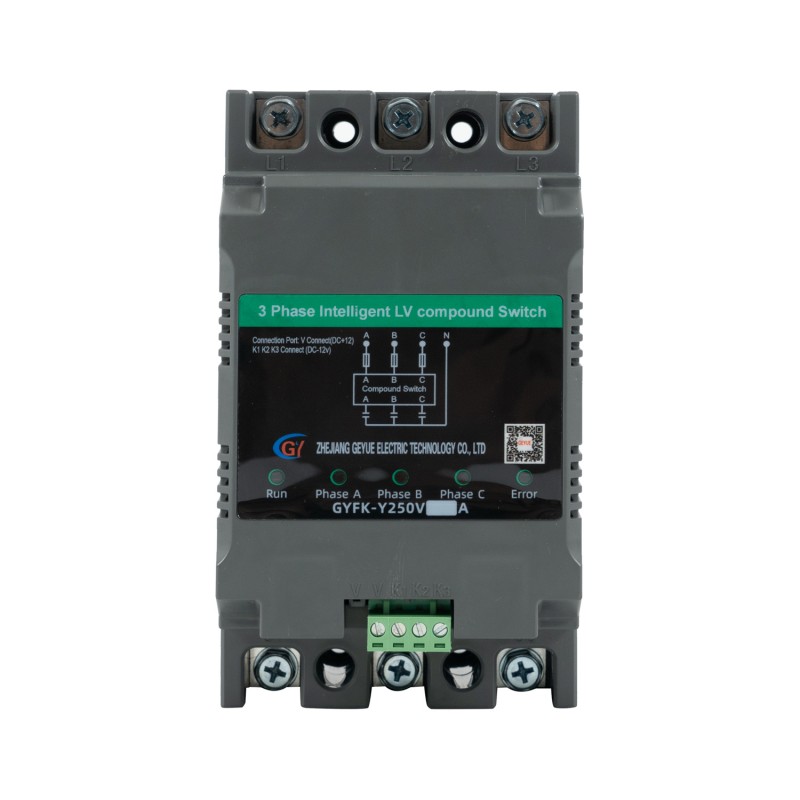

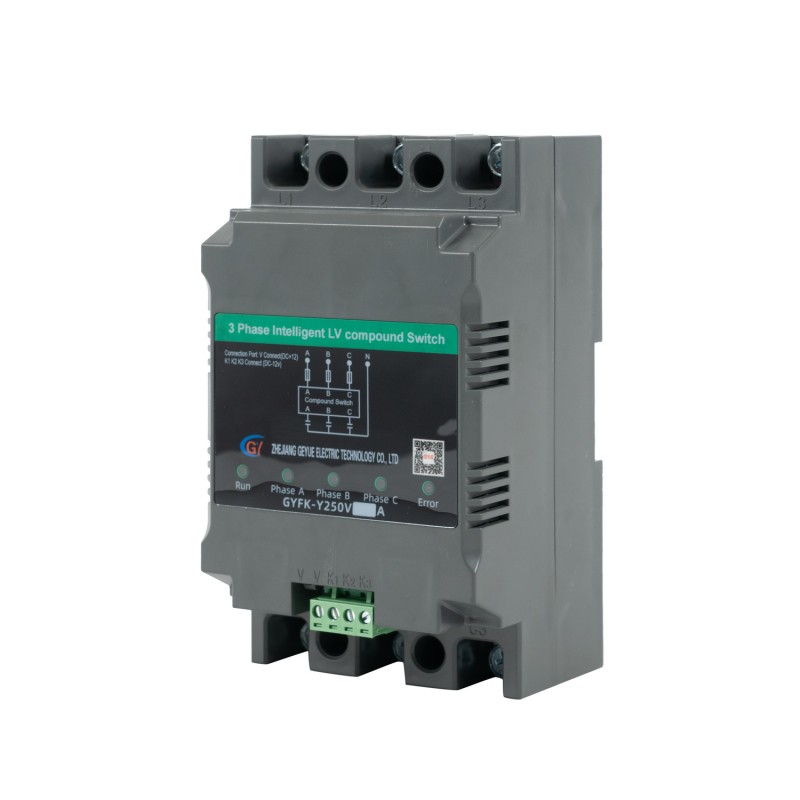

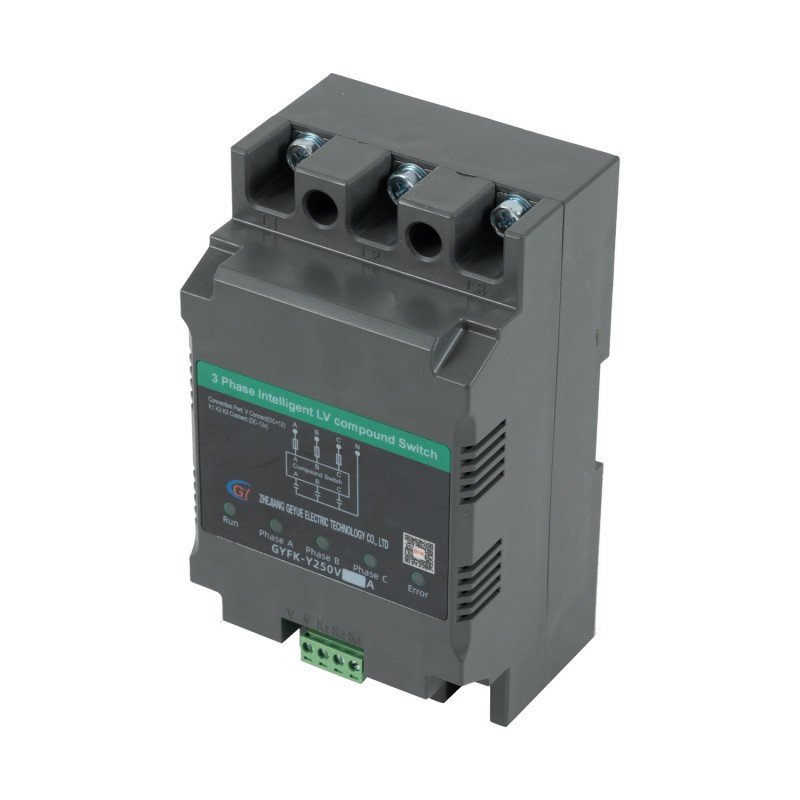

GYFK-Y250V Split-Phase Compensation Three Phase Intelligent Low Voltage Compound Switch

During the urbanization process, the power supply systems of a large number of old residential areas are facing an increasingly serious challenge - excessive zero-line current due to unbalanced three-phase power. This phenomenon not only leads to energy waste and equipment damage, but also poses significant safety hazards. As a professional manufacturer of low-voltage reactive power compensation equipment, Geyue Electric fully understands the severity of this three-phase imbalance problem and, through our independently developed GYFK-Y250V Split-Phase Compensation Three Phase Intelligent Low Voltage Compound Switch, has provided a precise and efficient solution to this widespread issue.

Three-Phase Imbalance: The Overlooked "Invisible Killer" of Community Power Supply

The community power supply system of old residential areas was often difficult to anticipate the current electricity usage pattern when it was initially designed. With the improvement of residents' living standards, the number of high-power single-phase loads such as air conditioners, electric water heaters, and electric vehicle charging stations has increased significantly, and the usage time of these modern appliances is highly concentrated. These loads are randomly distributed on one or two phases of the three-phase power grid, resulting in severe asymmetry of the three-phase current, which is known as "three-phase imbalance".

According to the principles of electrical engineering, the unbalanced currents in a three-phase system do not cancel each other out; instead, they are superimposed at the neutral point, forming a zero-line current that is much larger than the phase current. In extreme cases, the zero-line current may even exceed twice the phase current. This zero line, which was originally designed to carry small unbalanced currents, is now under an overload test, causing problems such as overheating of the cables, accelerated aging of the insulation, and burning of the connectors. Severe overload may even lead to electrical fires, threatening the safety of residents' lives and property.

The Limitations of Traditional Compensation: Why Is "Collective Compensation" Approach Inadequate?

In the face of three-phase imbalance, the traditional three-phase compensation reactive power compensation device is found to be inadequate. This "collective compensation" approach treats the three phases as a single entity and makes a unified decision to switch on or switch off, and it can only compensate for the total reactive power of the system, but is powerless in dealing with the unbalanced active and reactive power distribution among the three phases. In other words, the traditional "collective compensation" is unable to carry out targeted reactive power compensation for specific phases with excessive current; the root cause of the excessive neutral line current still exists, which is palliative, like performing overall reinforcement for a tilted building without correcting the uneven settlement of its foundation.

Phase-By-Phase Precise Compensation: The "Targeted Therapy" Approach of GYFK-Y250V Split-Phase Compensation Compound Switches

The GYFK-Y250V Split-Phase Compensation Three Phase Intelligent Low Voltage Compound Switch of Geyue Electric is precisely a "targeted therapy" solution addressing the "three-phase imbalance problem" in "old residential areas". Its core technology lies in the perfect combination of "split-phase independent switching" and "intelligent zero-crossing switching".

The GYFK-Y250V Split-Phase Compensation Three Phase Intelligent Low Voltage Compound Switch can monitor the voltage, current and power factor of each phase (A phase, B phase, C phase) in real time, and independently determine the reactive power demand of each phase. When a certain phase has a heavy load and a low power factor, the GYFK-120A will intelligently control the dedicated composite switch for that phase, precisely engaging the corresponding capacity of capacitors and only providing reactive power compensation for that phase. This "where there is a shortage, compensate for that phase" mode fundamentally corrects the imbalance among the three phases.

More importantly, the GYFK-Y250V Split-Phase Compensation Three Phase Intelligent Low Voltage Compound Switch reduces the zero-line current superimposed at the neutral point by balancing the currents of each phase at its source. The significant decrease in zero-line current directly eliminates a series of safety hazards caused by overheating, restoring the power supply system to a safe and lightly-loaded operation state. At the same time, the voltage zero-crossing conduction and current zero-crossing interruption technology adopted by the intelligent compound switch ensures no surge current impact during the switching of capacitors, effectively addressing the three-phase imbalance issue while protecting the capacitors and other equipment in the power grid, achieving smooth, quiet and long-lasting operation of the low-voltage reactive power compensation system.

Geyue Electric’s Responsibility: Safeguarding the Bottom Line of Electrical Safety with Professional Solutions

To resolve the power supply safety crisis in old residential areas, what is needed is not just an excellent capacitor switching device, but a complete solution that is based on the site and focuses on the fundamentals. Geyue Electric, as a Chinese manufacturer that has been deeply involved in the field of low-voltage reactive power compensation for many years, has always placed the reliability of the product, the adaptability of the product to the working environment, and the ultimate value for users at the core of our research and development.

The GYFK-Y250V Split-Phase Compensation Three Phase Intelligent Low Voltage Compound Switch is the crystallization of our core concept. Its simple design that does not require connection to the neutral line is suitable for the renovation of old lines; its extremely low operating heat and natural convection cooling capabilities make it not afraid of the enclosed and dusty environment in the distribution room; and its comprehensive protection functions provide a solid guarantee for long-term maintenance-free operation.

What we offer is far more than just a single capacitor switching device. It is a full-process solution provider service covering precise selection, system design, installation guidance and after-sales support. Geyue Electric is willing to work together with property management, power grid companies and engineering units, to jointly empower the power systems of old communities in old residential areas. We will transform the "invisible killer" of three-phase imbalance into a safe, balanced and efficient power supply pattern, and truly safeguard the electricity safety and living quality of thousands of households. Let's use smarter electricity to illuminate the harmonious community life.
