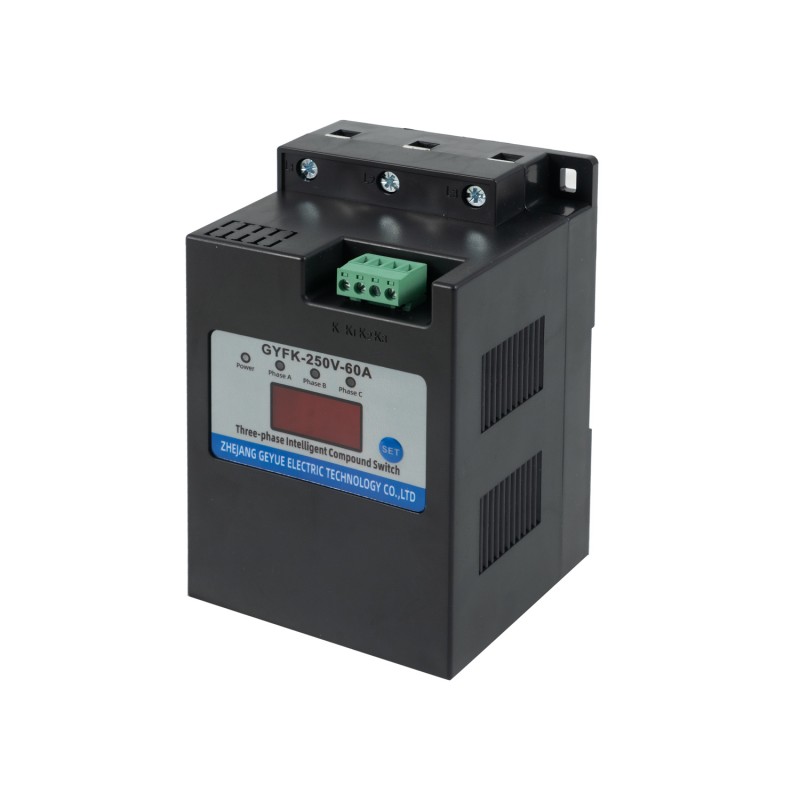

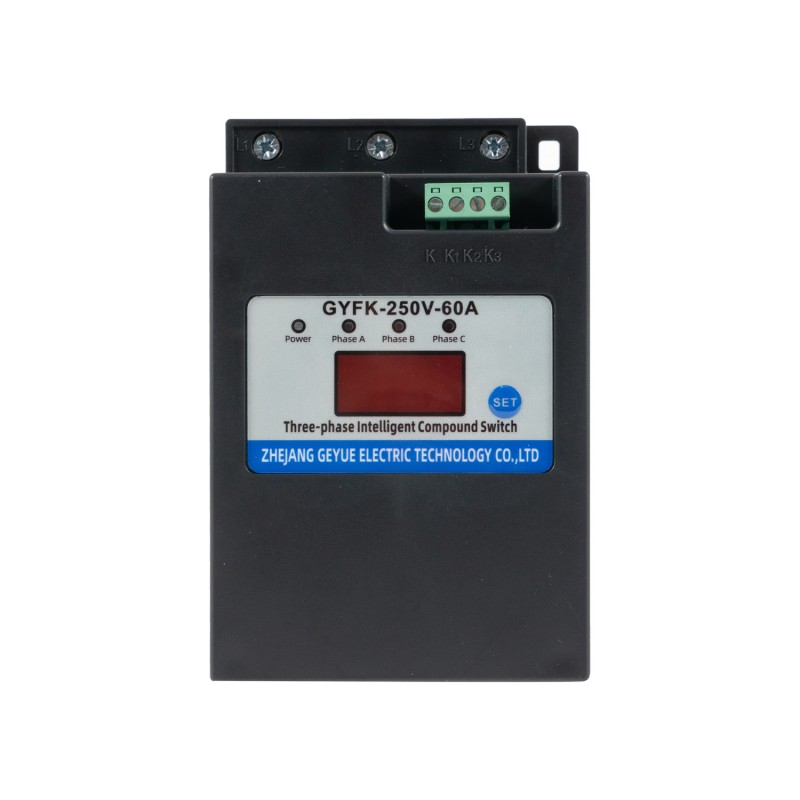

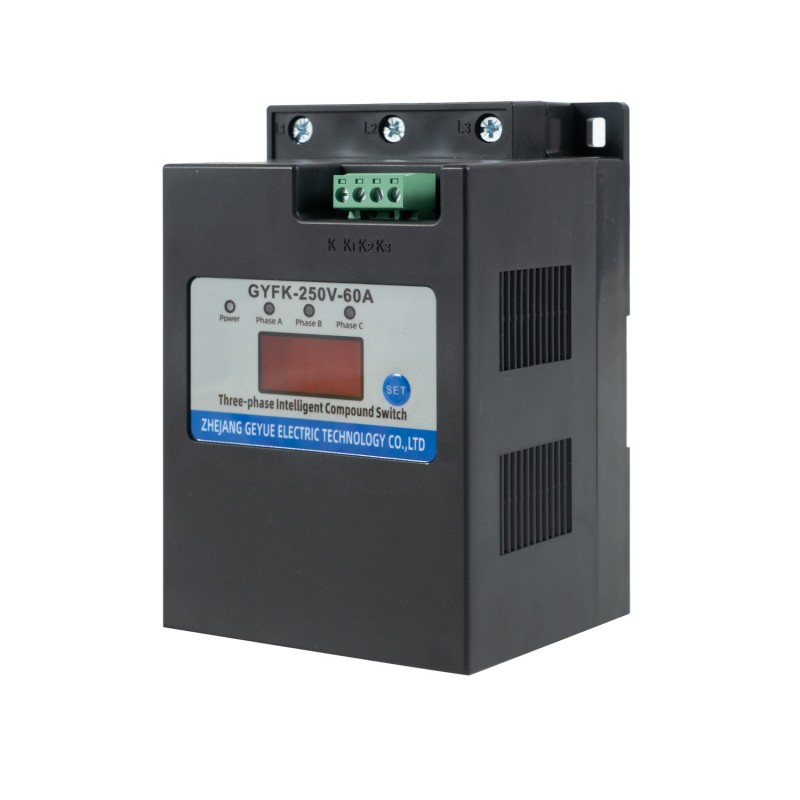

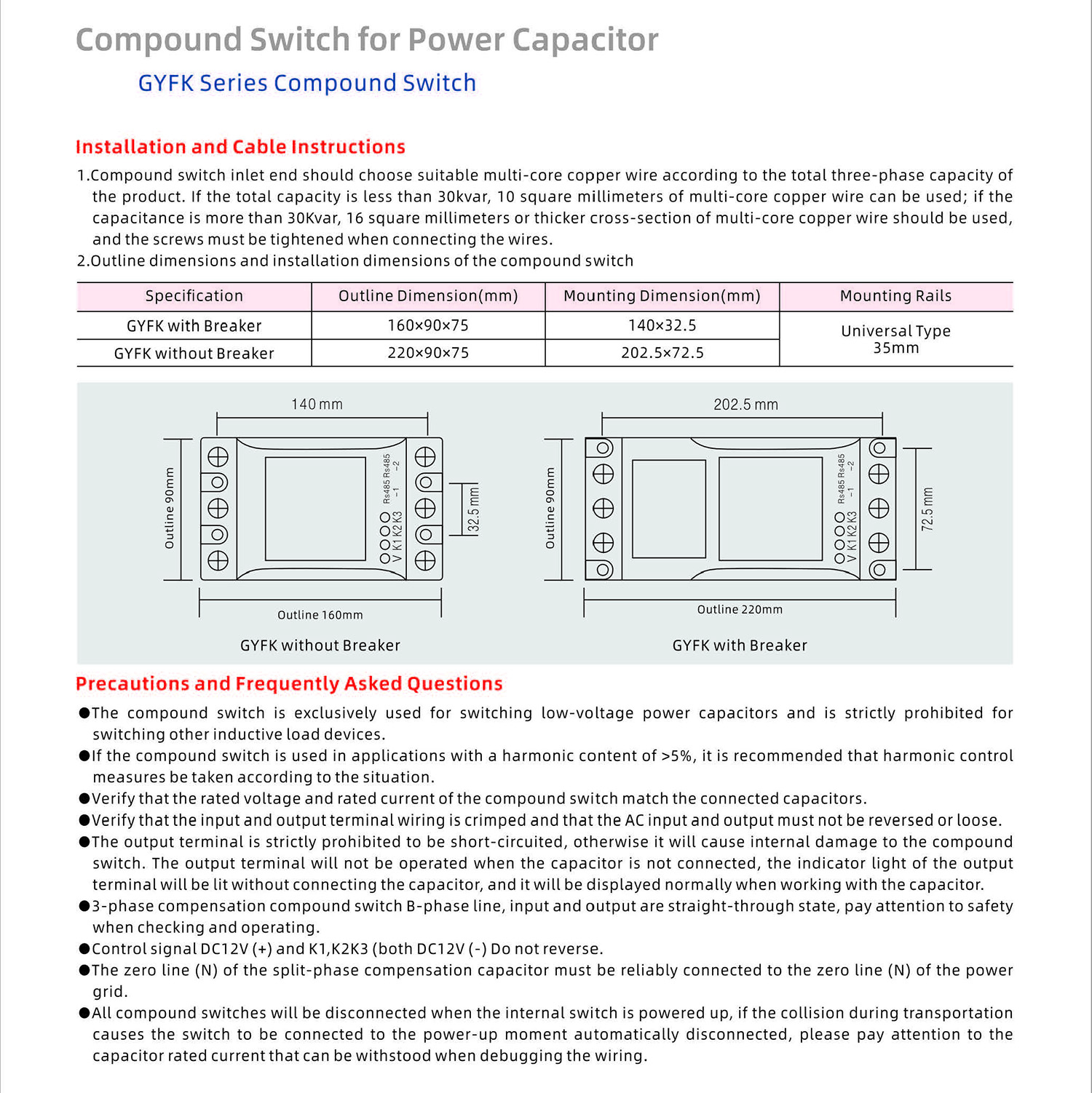

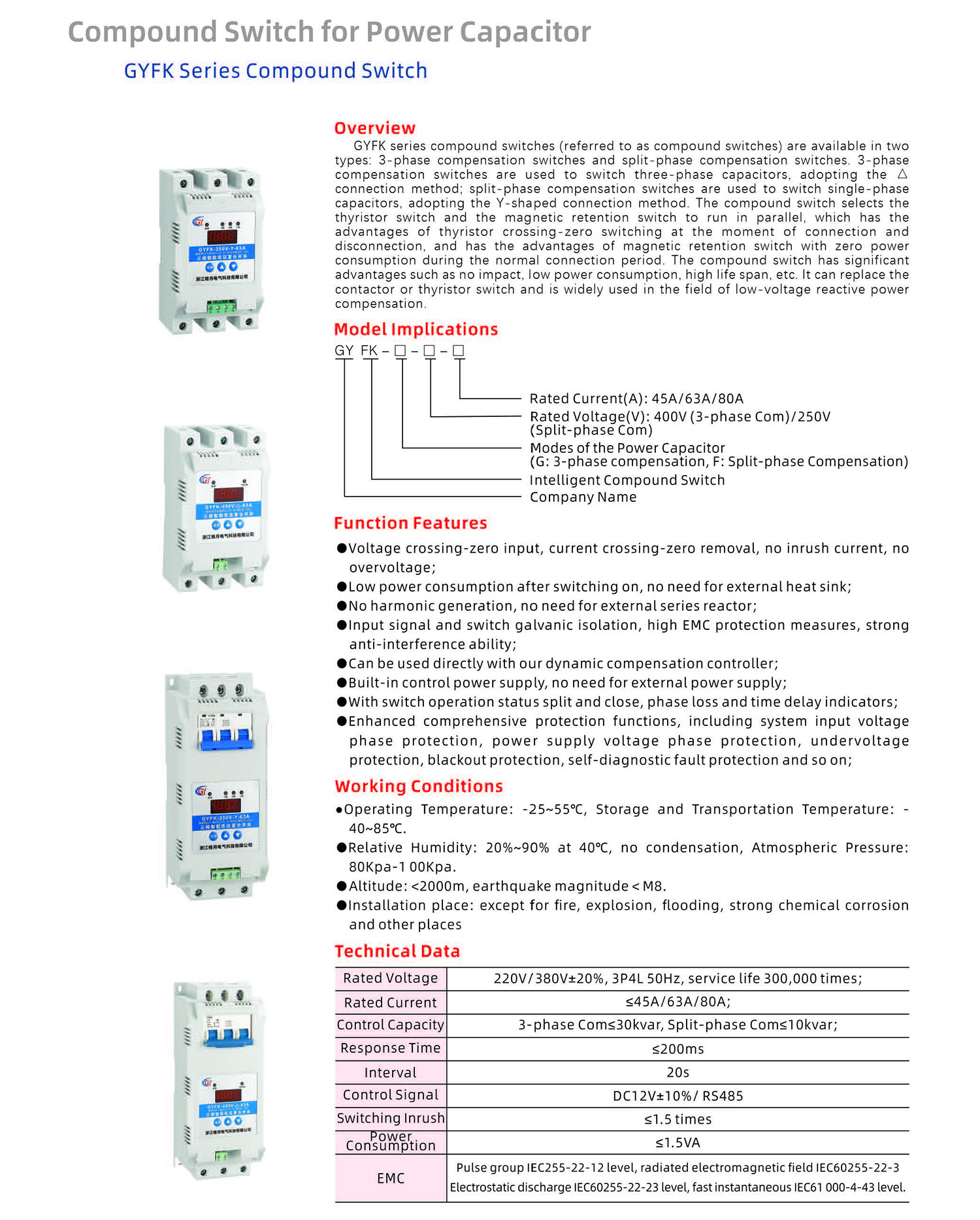

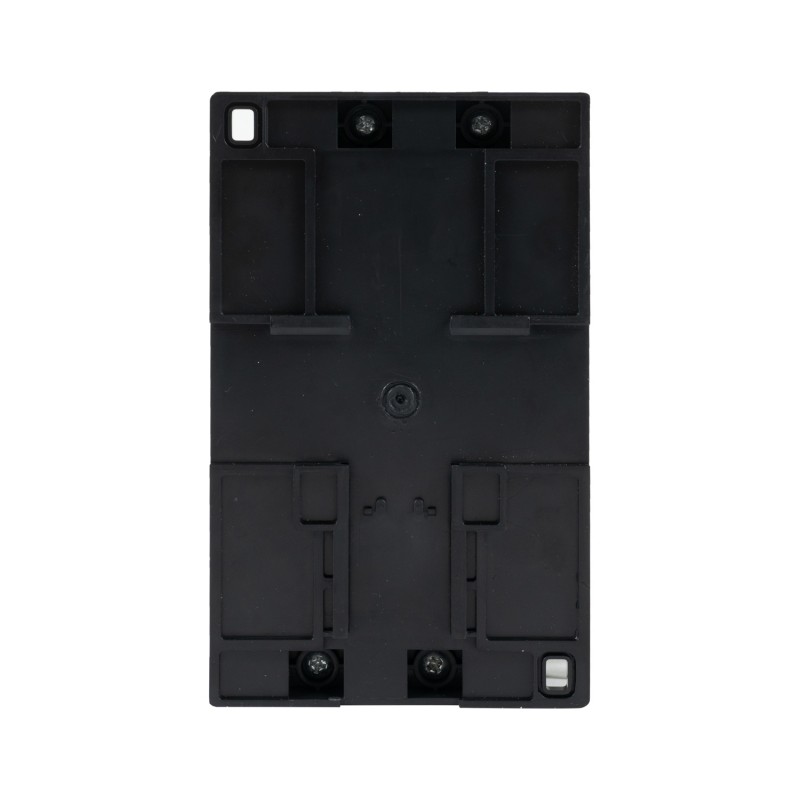

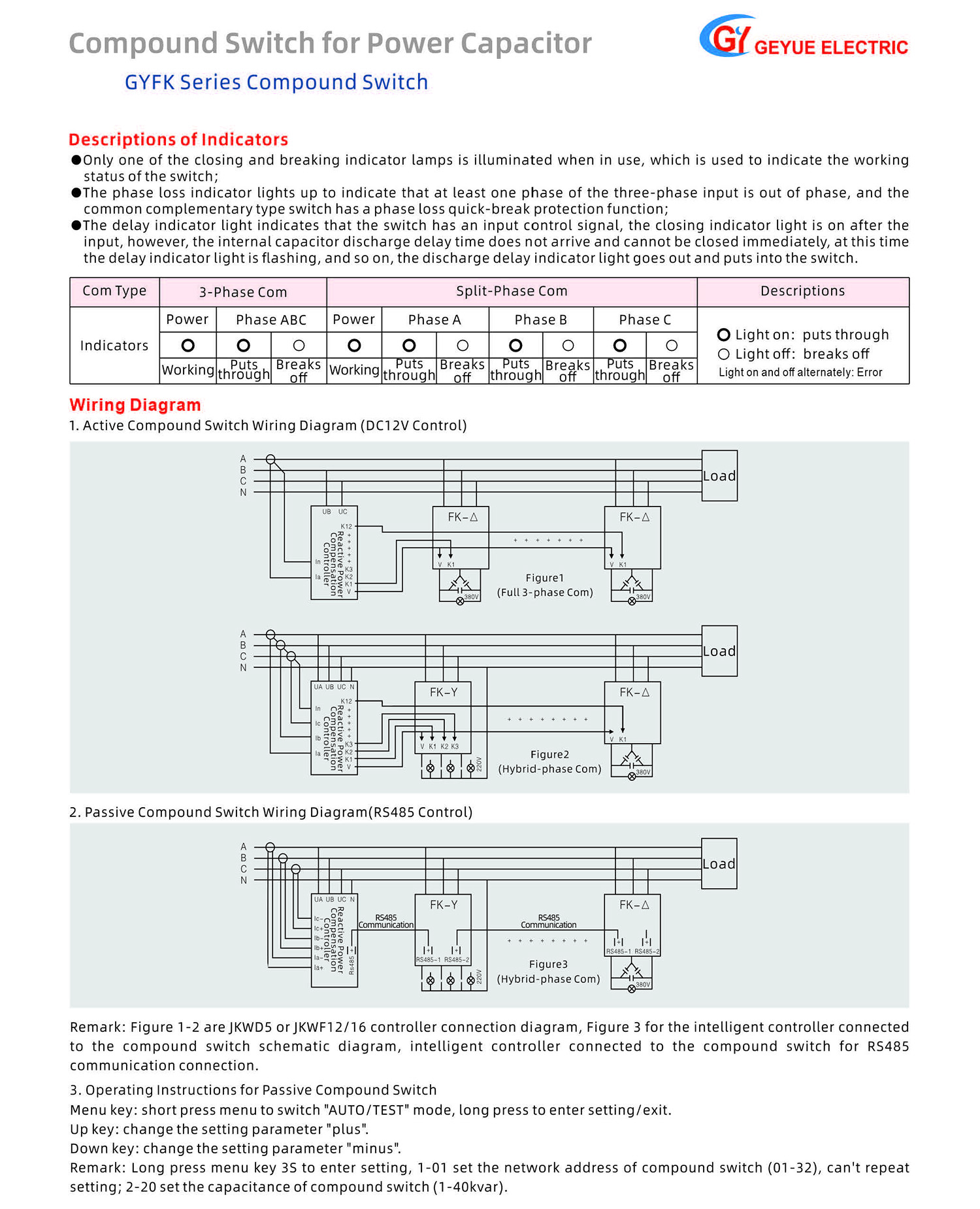

GYFK-250V Split-Phase Compensation Three Phase Compound Switch

In the modern industrial sector, which pursues high efficiency, energy conservation, and grid security, low-voltage reactive power compensation technology is undergoing a new round of profound innovation. The inherent contradiction of traditional capacitor switching schemes, which requires a trade-off between inrush current suppression and operational loss savings, has long troubled many engineers. As a professional equipment manufacturer with over a decade of experience in power quality, Geyue Electric, with our profound understanding of the essence of low-voltage reactive power compensation technology, has successfully launched the GYFK-250V Split-Phase Compensation Three Phase Compound Switch. This innovative compound switch combines the advantages of thyristors and mechanical contacts, cleverly resolving this industry challenge.

Seamless Switching: The Precision of Zero-Inrush Technology

The traditional mechanical switch, the CJ19 series AC contactor, suffer from inherent mechanical hysteresis and contact bounce characteristics, making it difficult to accurately capture and execute switching actions at the AC voltage zero-crossing point. This technical limitation results in a significant potential difference between the capacitor's terminal voltage and the grid voltage at the moment of grid connection, inevitably generating a huge inrush current. This inrush current peak can reach tens of times the capacitor's rated current, not only causing electrical stress on the capacitor and shortening its lifespan, but also causing a momentary voltage drop in the grid, interfering with the normal operation of other sensitive equipment on the same busbar.

The core design wisdom of the GYFK-250V Split-Phase Compensation Three Phase Compound Switch developed by Geyue Electric is concentrated in its innovative "thyristor-first, relay-later" transient switching operating mode, fundamentally solving this industry-wide problem. When this compound switch's control system receives an external switching command, its built-in high-performance microprocessor immediately initiates an intelligent decision-making program. The microprocessor samples the AC grid voltage waveform in real time at high speed, predicting and locking the optimal voltage zero-crossing point through precise algorithms.

Upon capturing this theoretically "zero-stress" moment, the GYFK-250V Split-Phase Compensation Three Phase Compound Switch first drives the high-speed thyristor (i.e., silicon controlled rectifier) to perform precise triggering. Since the thyristor is triggered when the voltage crosses zero, this achieves "zero-voltage connection" with theoretically no voltage surge during capacitor connection and "zero-current disconnection" with no current surge during disconnection. This mechanism suppresses the inrush current (surge current) at the moment of closing and opening to a negligible level, typically limited to within 1.5 times the capacitor's rated current.

The ingenuity of this entire process lies in the fact that the GYFK-250V Split-Phase Compensation Three Phase Compound Switch, like a master micro-sculptor, does not rely on forced mechanical closing, but rather on the ultra-high speed of electronic components and the forward-looking judgment of intelligent control to complete the electrical connection at the smoothest moment when the current and voltage waveforms naturally cross zero. This truly achieves flexible access and disconnection with "zero impact" on the power grid, perfectly protecting capacitors and front-end power supply equipment, and greatly improving the reliability and durability of the reactive power compensation system.

Low-Loss Operation: The Efficiency of Steady-State Intelligence

However, the thyristor has a physical characteristic of approximately 1V voltage drop when in the conducting state, meaning that when load current flows through the thyristor for an extended period, it will generate considerable conduction losses and significant heat. This not only increases unnecessary operating costs but also poses a continuous challenge to the heat dissipation design and long-term reliability of the low-voltage reactive power compensation system. The ability to perfectly overcome this challenge is another aspect of the engineering wisdom demonstrated in the design of Geyue Electric’s GYFK-250V Split-Phase Compensation Three Phase Compound Switch.

The moment the thyristor completes inrush-free conduction, the microprocessor-based intelligent control circuit inside the GYFK-250V Split-Phase Compensation Three Phase Compound Switch immediately initiates the next action. This intelligent control circuit precisely issues commands, rapidly driving the parallel magnetic latching relay (i.e., mechanical contacts) to close synchronously. Due to the special contact materials and structural design of the magnetic latching relay, its contact resistance after contact closure is extremely low, typically reaching the micro-ohm level. This ultra-low resistance characteristic allows the load current to quickly and smoothly transfer from the thyristor path to the relay path according to the natural law of the "path of least impedance."

Subsequently, the intelligent control circuit of the GYFK-250V Split-Phase Compensation Three Phase Compound Switch sends a turn-off signal, completely cutting off the thyristor. Thus, during the entire steady-state operation of the capacitor continuously connected to the grid, all load current is independently carried by the near-zero-power mechanical contact channel. This coordinated design of "thyristor switching and relay operation" reduces the self-conduction power consumption of the GYFK-250V compound switch to an extremely low level during long-term operation. Rigorous testing shows that the overall steady-state power consumption of the GYFK-250V compound switch can be controlled within 1.5 VA, truly achieving highly efficient and energy-saving operation of the system itself, thereby fundamentally solving the inherent technical shortcomings of traditional pure thyristor switches, such as severe heat generation and high operating energy consumption.

Reliable System: The Assurance of Intelligent Protection

Balancing switching and operational performance is only the foundation; in complex industrial environments, long-term reliable operation and comprehensive protection are equally crucial. The GYFK-250V Split-Phase Compensation Three Phase Compound Switch incorporates a robust monitoring and protection system centered on a microprocessor. It monitors the input power voltage, load status, and the operational status of internal thyristors and relays in real time, providing multiple functions including voltage anomaly protection, phase loss protection, component fault self-diagnosis, no-load protection, and power outage protection. For example, in the event of a phase loss in the system voltage or an abnormal power supply, the compound switch will refuse to close; if a fault is detected during operation, the compound switch will automatically disconnect. This 24/7 self-diagnosis and protection capability endows the compound switch with extremely high safety and reliability, extending its service life to 200,000 cycles, far exceeding that of traditional electrical components.

Geyue Electric’s Craftsmanship: The Reliability of Advanced Technology

Geyue Electric firmly believes that superior product performance stems from rigorous design, exquisite manufacturing, and a deep insight of application scenarios. Our GYFK-250V Split-Phase Compensation Three Phase Compound Switch is a prime example of this philosophy. From the selection of high-permeability materials to precision stamping, from the optimization of microprocessor programs to every rigorous factory test (including 1600VAC contact withstand voltage testing and long-term aging tests), our automated production lines and quality control systems ensure that every product delivered to our customers possesses consistently excellent quality.

Our company’s compound switches support both three-phase compensation or split-phase compensation, with rated compensation capacity ranging from 5 to 10 kvar for each phase and a response time as fast as 300 milliseconds. The GYFK-250V Split-Phase Compensation Three Phase Compound Switch was specifically designed to solve the common three-phase load imbalance problem in commercial buildings, photovoltaic power plants, and intelligent manufacturing production lines. It not only effectively improves the power factor and reduces line losses, but also balances the three-phase current through split-phase compensation, radically improving voltage quality and enhancing transformer load capacity and power supply safety.
