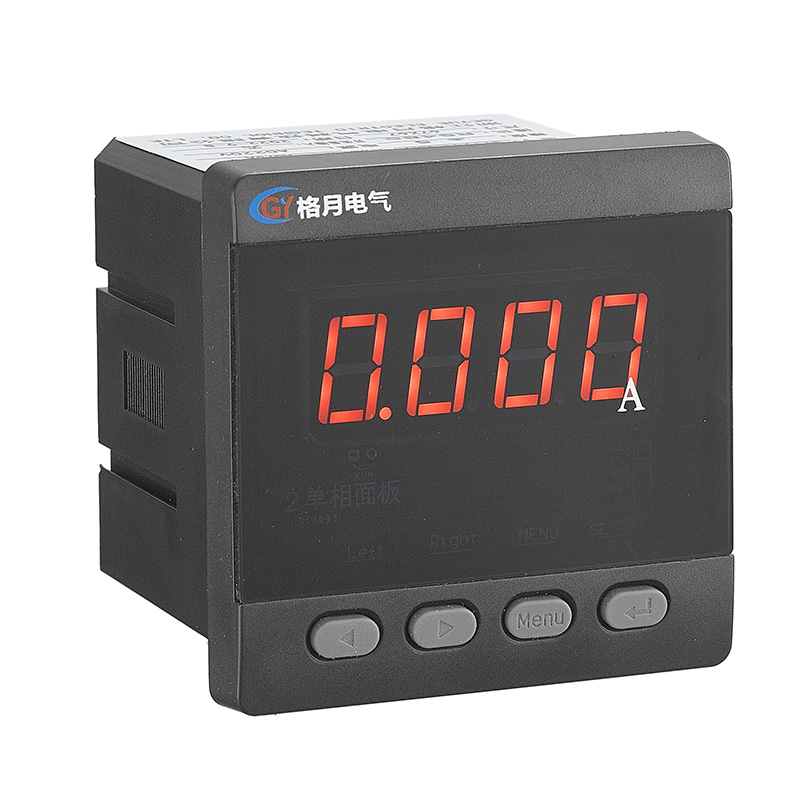

GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter

The GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter adopts a high-performance single-chip microcomputer combined with high-precision analog-to-digital conversion (AD) technology. This product can sample, calculate, and digitally process single-phase AC current signals, and conduct data interaction through the RS485 communication interface. This product can achieve high-precision and stable measurement of single-phase circuit current and LED/LCD digital display, and can be programmed to set parameters, possessing remote data communication and centralized monitoring capabilities. This product is widely applied in industrial automation, intelligent power distribution, energy management and other fields where precise monitoring of single-phase current is required to achieve networked management.

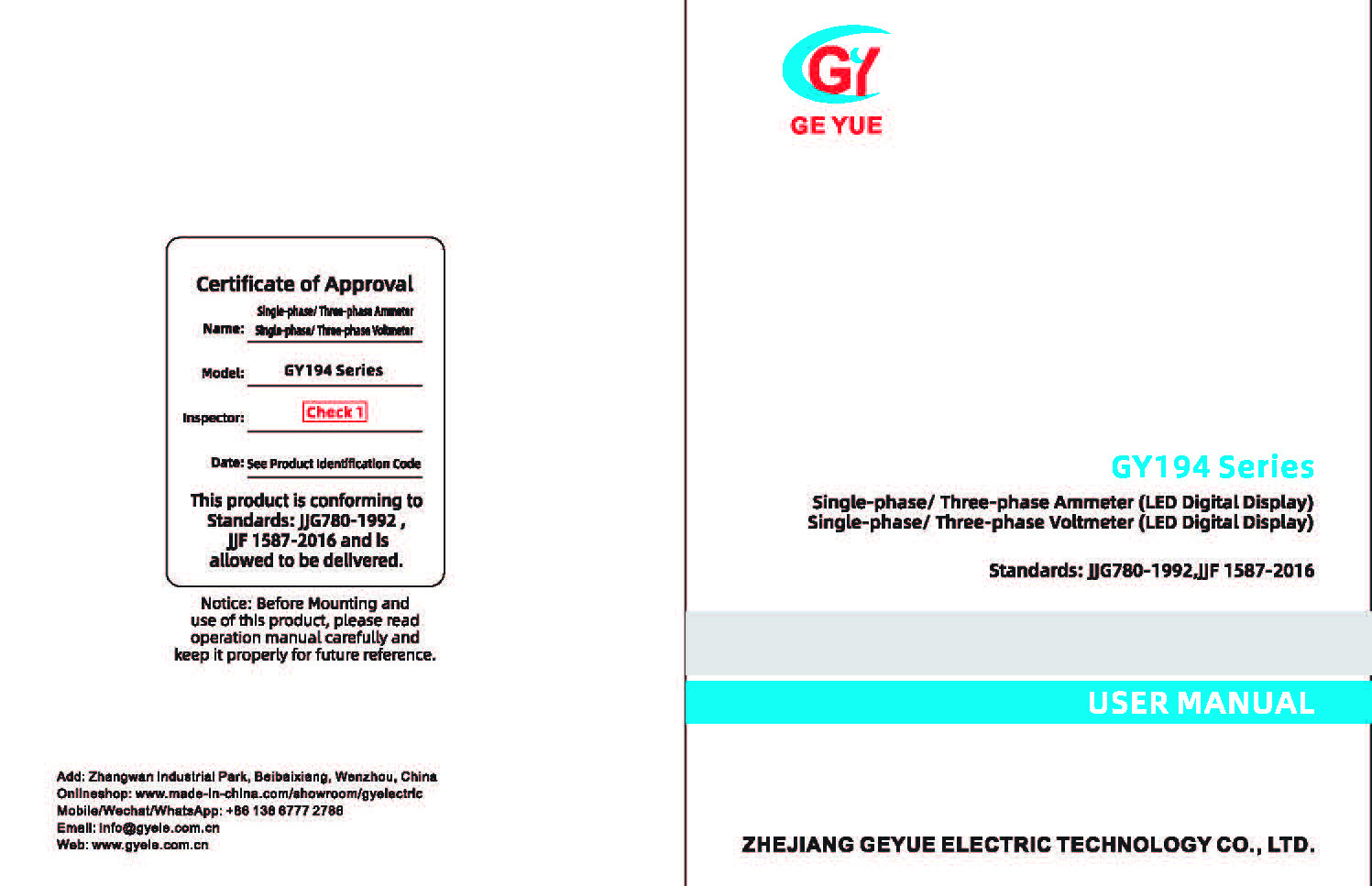

This product restrainedly adheres to the JJG780-1992 and JJF1587-2016 Standards.

In the world of electrical measurement, the ultimate stability and the ultimate precision are the eternal pursuits of measurement instrument manufacturers. Especially in complex industrial sites, electromagnetic interference is ubiquitous, like invisible waves, constantly testing the reliability of every instrument in the storm. For smart electricity meters, the anti-interference ability is not merely a single performance indicator, but rather the “soul” that determines their stability and precision. Therefore, the single-chip microcomputer design adopted by GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeters of Geyue Electric is precisely the "heart" that endows this “soul” with strong resistance to electromagnetic interference.

The Anti-Interference Revolution from Passive Protection to Active Intelligent Control

Traditional instrument design often relies on physical isolation and circuit filtering to passively resist electromagnetic interference. Although this approach has certain effectiveness, it often falls short when dealing with rapidly changing and complex industrial electromagnetic environments. Taking our GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter as an example, the core component we use, a high-performance single-chip microcontroller, represents a paradigm shift from "passive defense" to "active intelligent control".

How can we vividly explain the role of a microcontroller? We can say that the microcontroller is like a highly integrated and extremely intelligent command center. It is not merely a single chip; rather, it is an on-chip system that integrates the central processing unit, memory, analog-to-digital converter, and various input/output interfaces. This deep integration not only significantly reduces the number of external leads and discrete components physically, but also fundamentally lowers the risk of interference caused by complex circuits, enabling the GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter to possess a powerful real-time digital signal processing capability.

Dynamic Purification of the Intelligent Core and Digital Fortress

When external interference signals attempt to "intrude" into the measurement circuit, the "intelligence" of the microcontroller begins to manifest. The internal program of GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter integrates advanced digital filtering algorithms. These algorithms are like a highly precise dynamic filter, capable of real-time identification and elimination of high-frequency noise, harmonic interference, and random pulses superimposed on the electrical current signal. This software-level filtering is more flexible and more precise than simple hardware RC filtering, and it can be continuously optimized based on the actual interference characteristics to achieve dynamic purification.

Furthermore, the microcontroller of the GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter has an extremely strict timing management and monitoring technology within its system, which forms a solid "digital fortress" capable of withstanding various invisible and random electrical disturbances in industrial environments as well as occasional internal faults. The strict timing management and monitoring technology within the microcontroller can ensure that even if the GY1941-K1 series single-phase current meter experiences a brief abnormality during program execution due to strong electromagnetic interference, it can immediately reset and automatically return to normal operation, preventing data confusion or system freezing. The RS485 communication interface with isolation design, under the coordination of the single-chip microcontroller, make sure the electrical isolation during the data transmission process outward, effectively blocking the common-mode interference caused by the on-site ground loop, and allowing the remote data transmission to be clear and stable as well.

The Cornerstone of Precise Measurement and Intelligent Compensation

This powerful "heart" of the microcontroller enables the GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter to consistently provide stable and precise current data in challenging electrical environments. This precision measurement is the cornerstone for the efficient and safe operation of the entire low-voltage power distribution system. For the reactive power compensation field, precise current measurement is the prerequisite for determining the system's reactive power demand and achieving rapid compensation. It is like a vigilant sentry, and the reliable information it provides directly sets the tone of the timeliness and correctness of the subsequent actions of the compensation equipment.

As a professional manufacturer with a long history in the field of low-voltage reactive power compensation, Geyue Electric has always placed the reliability and adaptability of our products at the core of our research and development. We not only provide robust and reliable perception layer instruments like the GY1941-K1 Series LED LCD AC DC RS485 Single Phase Ammeter, but also offer a comprehensive one-stop solution covering intelligent capacitors, reactors, and a full range of reactive power compensation controllers. We deeply understand that an efficient and stable compensation system begins with precise measurements at every point and is achieved through the reliable collaboration of every device. Geyue Electric is willing to use solid technology and qualified products to help users build an efficient reactive power compensation system from precise perception to intelligent governance, jointly improving power distribution quality and achieving the dual goals of safety and energy conservation.
