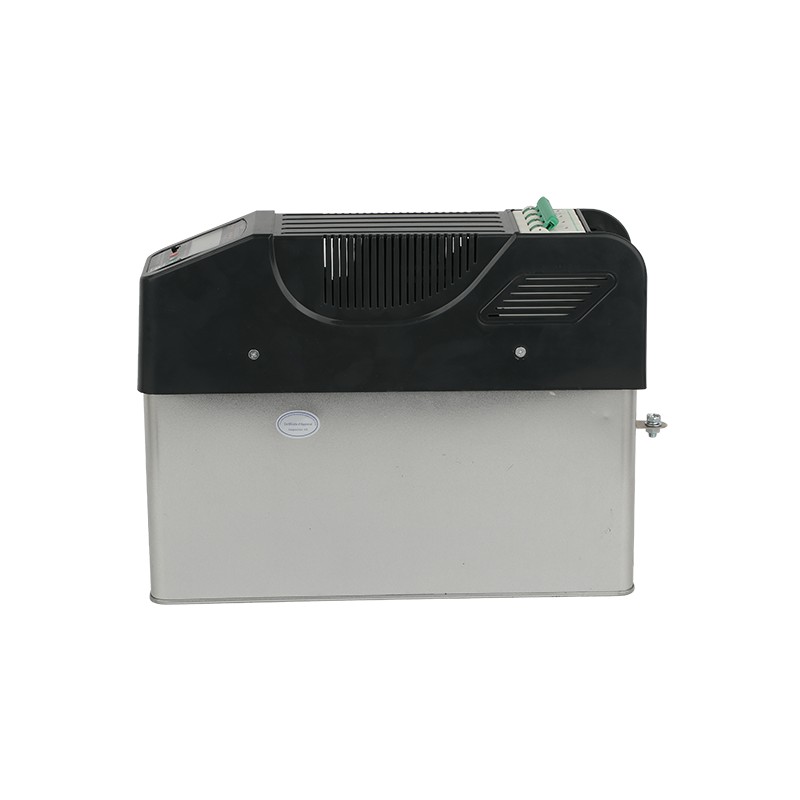

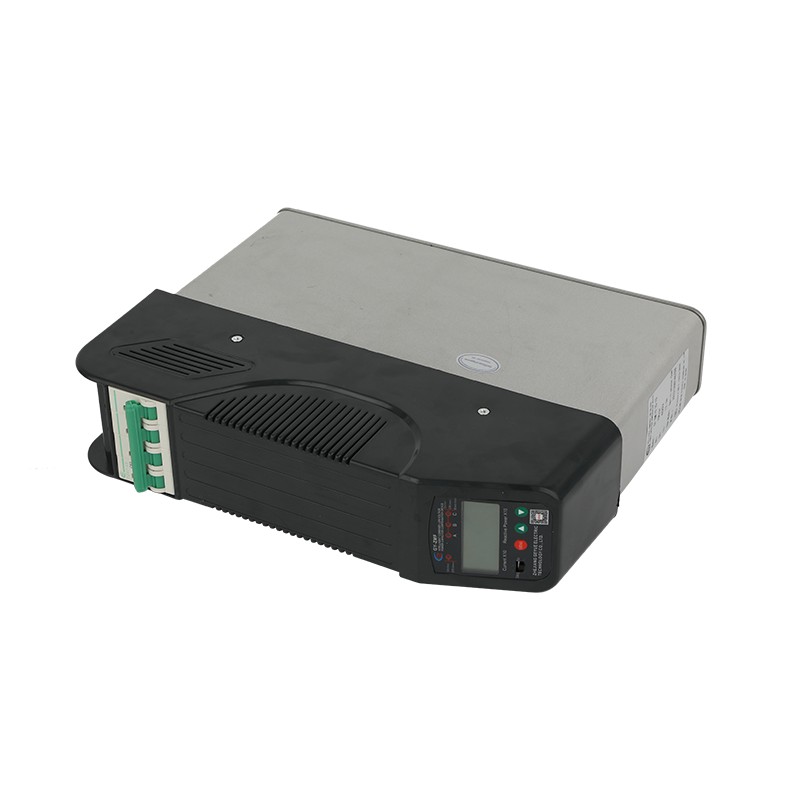

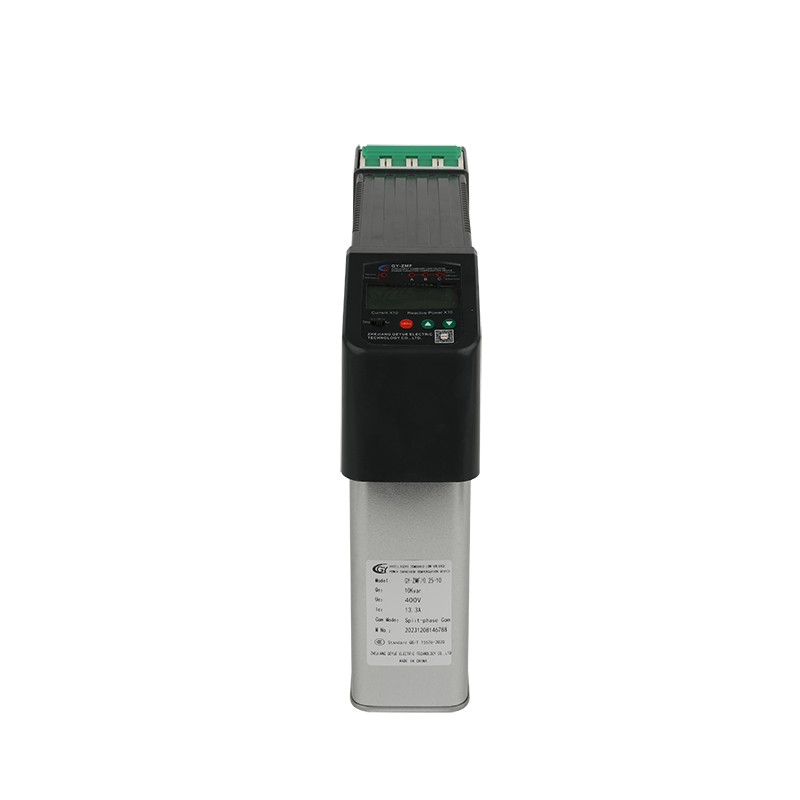

GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor
Model:GY-ZMF Series
GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor is an integrated intelligent compensation device designed by Geyue Electric for reactive power compensation in the 0.4kV power grid.
1. Application: for 0.4kV low voltage distribution system.
2. Features: Flexible compensation. Small volume. Easy installation. Low power consumption. High reliability.
3. Functions: Power factor improvement. Voltage quality optimization. Energy saving. Loss reduction.
4. Protections: Temperature control protection. Open-Phase protection. Overvoltage protection. Undervoltage protection, and etc.
This product has obtained CCC certification (China Compulsory Certification): Citification No. A069544. And it is strictly in accordance with the JB/T 9663-2013 and GB/T 15576-2008 Standards.
1. Application: for 0.4kV low voltage distribution system.
2. Features: Flexible compensation. Small volume. Easy installation. Low power consumption. High reliability.
3. Functions: Power factor improvement. Voltage quality optimization. Energy saving. Loss reduction.
4. Protections: Temperature control protection. Open-Phase protection. Overvoltage protection. Undervoltage protection, and etc.
This product has obtained CCC certification (China Compulsory Certification): Citification No. A069544. And it is strictly in accordance with the JB/T 9663-2013 and GB/T 15576-2008 Standards.
Three-Phase Compensation and Split-Phase Compensation of intelligent capacitors are the two key concepts in the power compensation sphere, each of which has different characteristics and application scenarios:
Geyue Electric GY-ZMG Series Three-Phase Compensation Intelligent Low Voltage Power Capacitor, mainly compensates the three-phase circuits at the same time, so that the three phases work together at the same time: ON and OFF at the same time. The advantages of Three-Phase Compensation lie in its good reliability, economical benefits, simple operation and control, convenient maintenance in the later period, and low requirements for compensation controller. However, in the case of three-phase unbalance, the GY-ZMG Series Three-Phase Compensation Intelligent Low Voltage Power Capacitor cannot effectively compensate, but may cause the imbalance to increase. In the application scenario, GY-ZMG Series Three-Phase Compensation Intelligent Low Voltage Power Capacitor is mainly applicable to the load working in constant operation mode, such as electric furnace, whose load current is always stable, so GY-ZMG Series Three-Phase Compensation Intelligent Low Voltage Power Capacitor can play a certain compensation effect at the load end, reducing the reactive power and mutual inductance coupling power loss of the system.
Geyue Electric GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor, refer to single-phase compensation capacitor, which compensates only a single phase. Using a compound switch, a thyristor module or the other switching switch, the GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor can work independently on Phase A, Phase B or Phase C. The advantage of Split-Phase Compensation is that compensation precision is high, and it can deal with the situation of phase imbalance. However, its disadvantages are also obvious, that is, compared with the GY-ZMG Series Three-Phase Compensation Intelligent Low Voltage Power Capacitor, the GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor has higher requirements for the compensation controller, the line and control are more complex, the price is more expensive, and the later overhaul and maintenance is more difficult. In the application scenario, the GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor is more suitable for the power grid with unstable voltage and large load fluctuation. The Capacitor is directly connected with the power supply in parallel, and the capacity is adjusted in real time through automatic control, and the reactive power on the power supply side is eliminated, and the power factor and voltage stability of the system are effectively improved.
Geyue Electric GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor, refer to single-phase compensation capacitor, which compensates only a single phase. Using a compound switch, a thyristor module or the other switching switch, the GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor can work independently on Phase A, Phase B or Phase C. The advantage of Split-Phase Compensation is that compensation precision is high, and it can deal with the situation of phase imbalance. However, its disadvantages are also obvious, that is, compared with the GY-ZMG Series Three-Phase Compensation Intelligent Low Voltage Power Capacitor, the GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor has higher requirements for the compensation controller, the line and control are more complex, the price is more expensive, and the later overhaul and maintenance is more difficult. In the application scenario, the GY-ZMF Series Split-Phase Compensation Intelligent Low Voltage Power Capacitor is more suitable for the power grid with unstable voltage and large load fluctuation. The Capacitor is directly connected with the power supply in parallel, and the capacity is adjusted in real time through automatic control, and the reactive power on the power supply side is eliminated, and the power factor and voltage stability of the system are effectively improved.
